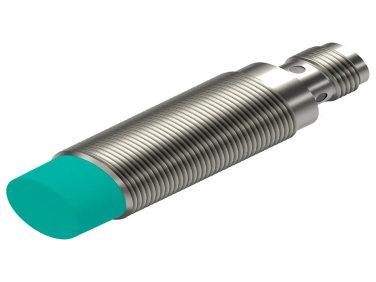

Pepperl+Fuchs Inductive sensor NBN12-18GM50-E2-V1

  • NG # 04172-HW-PEP-054

  • MF # NBN12-18GM50-E2-V1

Inductive sensor model NBN12‑18GM50‑E2‑V1 designed for non‑flush mounting with a 12 mm sensing distance. It offers high switching frequency, wide operating voltage and temperature ranges, and robust performance for industrial proximity detection applications.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBN12‑18GM50‑E2‑V1 is an industrial inductive proximity sensor used to detect metallic objects without physical contact. It features a non‑flush mounting design and delivers reliable switching performance with extended operating conditions. Commonly used in automation and control systems, this sensor supports a broad voltage range and is suitable for environments requiring high switching frequency and durability. Certifications include CE and cULus listings, ensuring compliance with industrial safety and quality standards.

Specification

General Characteristics

  • Sensing principle: Inductive proximity detection
  • Mounting type: Non‑flush
  • Rated operating distance: 12 mm

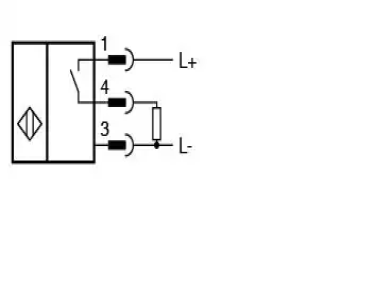

  • Output configuration: 3‑wire PNP
  • Switching function: Normally open (NO)

Electrical Specifications

  • Operating voltage range: 6 … 36 V DC
  • Switching frequency: up to 1300 Hz
  • Output current: up to 200 mA
  • Short‑circuit protection: Yes
  • Reverse polarity protection: Yes

Performance & Safety

  • Hysteresis: approx. 5 % typical
  • Diagnostic coverage: 0 %
  • Functional safety parameters (MTTF, mission time): specified in datasheet
  • Standards compliance: EN IEC 60947‑5‑2
  • Approvals: CE, cULus Listed

Environmental & Mechanical

  • Ambient temperature range: ‑40 … 85 °C
  • Storage temperature: ‑40 … 85 °C
  • Degree of protection: IP65 / IP66 / IP67 / IP68
  • Housing material: Brass with white bronze coating
  • Connector type: M12 × 1, 3‑pin

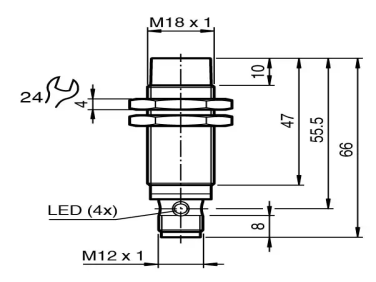

  • Sensor dimensions: Length ~ 66 mm, Diameter ~ 18 mm
  • Weight / Mass: ~ 58 g

Additional Features

  • LED switching indicator included
  • Suitable for use across a wide range of industrial applications
