Schneider electric TeSys F - contactor coil - LX1FJ - 240 V AC 40...400 Hz

  • NG # 02091-HW-SCHNEIDER-002

  • SKU # LX1FJ240

TeSys F AC coil 240V 40-400Hz (voltage code U7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. compliant (RoHS/REACh).

Manufactured By :
Schneider Electric
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

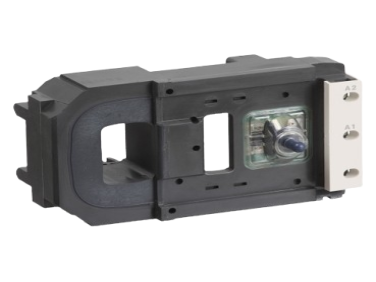

The Schneider Electric TeSys F AC coil (LX1FJ240) is a 240 V AC, 40–400 Hz coil designed for use with TeSys F 3-pole and 4-pole contactors (LC1F400). It features low sealed consumption and delivers high operating performance, supporting up to 2,400 cycles per hour.


The coil operates reliably within voltage limits of 0.85 – 1.1 Uc and in ambient temperatures up to 55 °C, making it suitable for demanding industrial environments.

It complies with RoHS and REACh environmental standards, ensuring safe and sustainable use.

Specification


Main
RangeTeSys
Product or component typeContactor coil
Device short nameLX1FJ
Range compatibilityTeSys TeSys F LC1F contactor
Product compatibilityLC1F400
Control circuit typeAC at 40...400 Hz
[Uc] control circuit voltage240 V AC 40...400 Hz
Inductance of closed circuit6.4 H
Average resistance47.5 Ohm inrush at 20 °C
1320 Ohm holding at 20 °C
Operating time100...170 ms opening
40...75 ms closing
Mechanical durability10 Mcycles
Maximum operating rate2400 cyc/h 55 °C

Complementary
Coil technologyWithout built-in suppressor module
Control circuit voltage limitsOperational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C)
Inrush power in VA1075 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA15 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Heat dissipation14 W at 40...400 Hz

Environment
Ambient air temperature for operation-5…55 °C
Net weight1 kg

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height18.796 cm
Package 1 Width9.144 cm
Package 1 Length9.906 cm
Package 1 Weight1.102 kg
Unit Type of Package 2S03
Number of Units in Package 26
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.37 kg

Logistical informations
Country of originCZ

Contractual warranty

Warranty18 months
