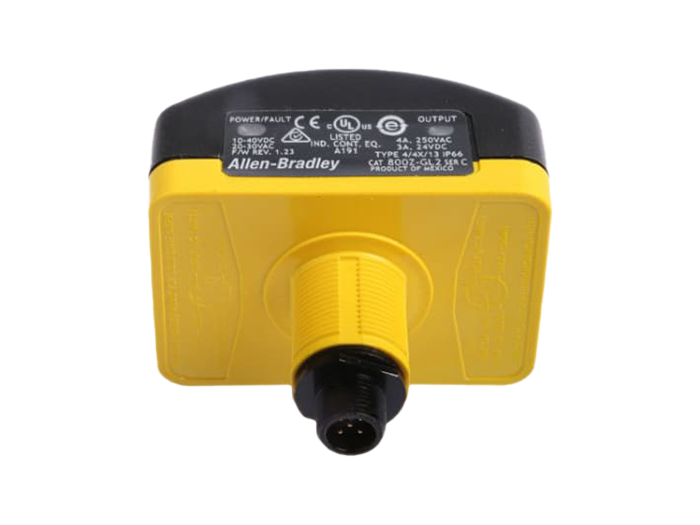

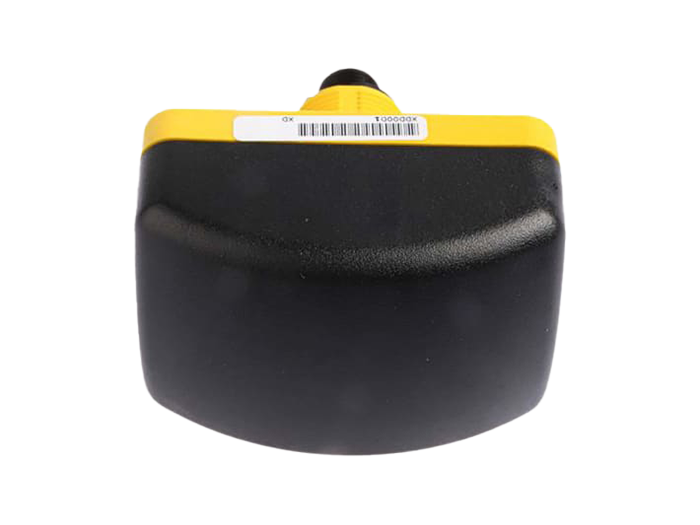

Allen Bradley 1 Button Safety Two Hand Control Switch, Black, Yellow, 800Z Series

  • NG # 02752-HW-ALBR-091

  • MF # 800Z-GL2Q5

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Zero Force Touch Buttons


Black polysulfone (VALOX 357) thermoplastic housing
Suitable for single or two hand control applications
Fits 22.5mm hole
Prewired or five-pin micro quick disconnect connector versions available
Reduces the risk of repetitive strain injuries


Ergonomic design for simple and easy operation
CE Marked
IP66 ingress protection
1200 psi hose down capability
A 30.5mm to 22.5mm hole adaptor is available separately


Approvals

UL/ UL listed for Canada

Allen Bradley Momentary Control Switch, Flush Mount, NO/NC - 800Z-GL2Q5


Operate machines safely with this momentary control switch from Rockwell Automation's Allen Bradley range. It's ergonomically designed for simple, one-handed use and is curved to reduce repetitive-strain injuries. The button is touch-sensitive, so you can use it even while wearing protective gloves. Its field-effect sensor technology distinguishes between hand-pressing and accidental knocks from objects to increase safety. Thanks to a tough polysulfone thermoplastic casing, you can use this switch in heavy-duty industrial situations. An IP66 (ingress protection) rating makes it suitable for use in dusty or damp environments.


Features and Benefits


• Fits a 22.5mm mounting hole for ease of installation
• 5-pin micro connector is quick to install and detach, speeding up maintenance
• Flush mounting design to save space and ensure a clean finish


Standards and Certifications


• CE (Conformité Européene)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• EN 50081-2 (European Norm)
• IEC 60947-5-1 (International Electrotechnical Commission)


How does this momentary switch work?


The action of pressing the button mechanically links the contacts in the electrical circuit and lets your machine operate. As soon as you take your hand off the button, it springs back up so the connection is broken and the machine stops.



Zero Force & Opto Touch Switches


Actuated by sensors using patented Field Effect Technology which converts the touch of the operators hand into an electrical output. The two sensors have to be touched within 0.2 seconds of each other and can differentiate between a person's hand and most solid objects/substances, as well as resistance to accidental actuation via clothing, fluid, splashes etc.,There are built in diagnostic safeguards for power-up protection, foreign object intervention and film/deposit interference which all result in LED indication.

Specification

Series800Z
Contact ConfigurationSPDT
Number Of Push Buttons1
Push Button ActuationMomentary
Mounting TypeFlush Mount
Housing MaterialPBT, PET
Supply Current100mA
IP RatingIP66
Length69.9mm
Width40.9mm
Depth48.3mm
ColourBlack, Yellow
Dimensions69.9 x 40.9 x 48.3mm
