Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, Relay Output, 28-Input, AC, DC Input

  • NG # 02680-HW-ALBR-019

  • MF # 2080-LC50-48QWB

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

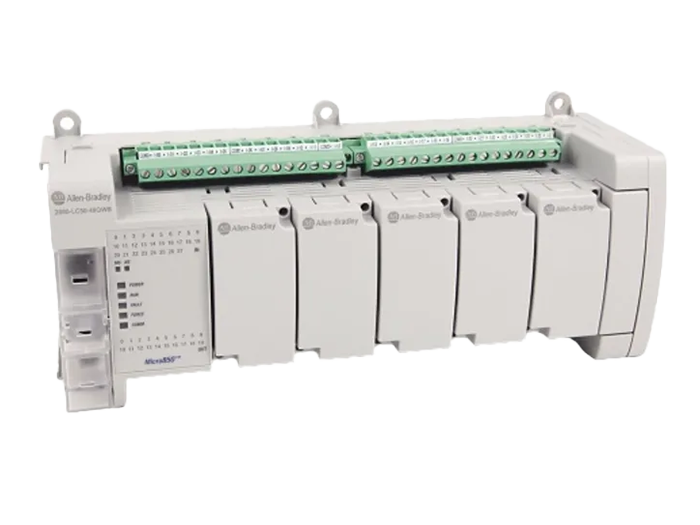

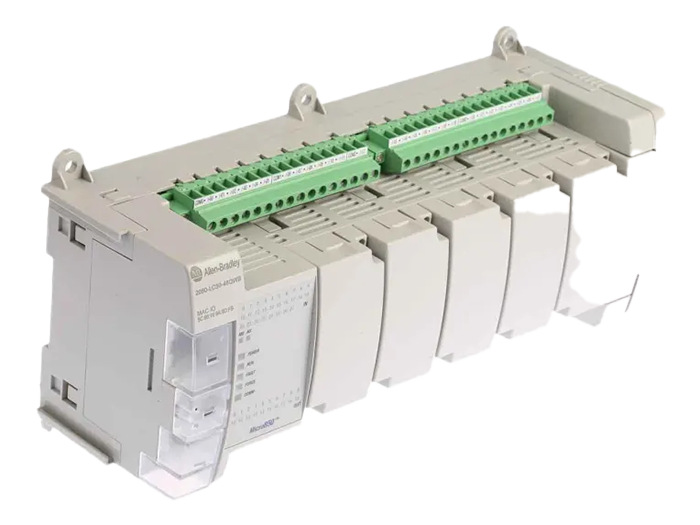

Allen Bradley PLC, 28 Inputs, 20 Outputs - Micro850 Series - 2080-LC50-48QWB


Looking for a control and automation solution for your heavy-duty industrial equipment? Choose this programmable logic controller (PLC) from Rockwell Automation's Allen Bradley range. It's designed for applications that need a lot of input/output functionalities. With 28 input and 20 output ports, there's ample allowance for control of various functions on your equipment. It also comes with expansion ports for extended functionality. With a weight of just 423g, this component is easy to handle and won't put a strain on your equipment. You'll find it commonly used in the robotics industry, as well as in process and packaging facilities.


Features and Benefits


• Compact dimensions of 90mm (length), 158mm (width) and 80mm (depth) for use in setups with limited space
• Wide operating temperature range of -20°C to +65°C for use in harsh environments
• DIN rail mounting for quick, simple and tool-free installation


Standards and Certifications


• UL (Underwriters' Laboratory)
• CE (Conformitè Europëenne)
• KC (Korean Registration of Broadcasting and Communications Equipment)


What's the IP (ingress protection) rating of this PLC?


This PLC has an IP20 rating. This means it can withstand dust and objects that are larger than 12mm in size.

Specification

Manufacturer SeriesMicro850
Number of Inputs28
Output TypeRelay
For Use WithMicro800 Series
Input TypeAC, DC
Number of Outputs20
Voltage Category24 V dc
Network TypeEthernet, USB
InterfaceEthernet
Communication Port TypeRS232, RS485, Serial
Depth80mm
Length238mm
Width90mm
Mounting TypeDIN Rail
Minimum Operating Temperature-20°C
Dimensions238 x 90 x 80 mm
Number of Communication Ports2
Output Current8.8 mA
Maximum Operating Temperature+65°C
