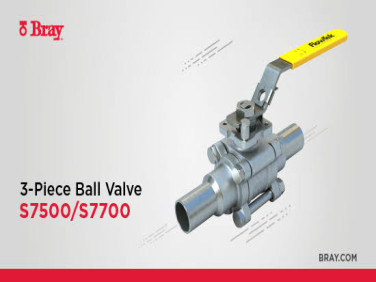

3-Piece Micro Pure Ball Valve – Series S7500/S7700

  • NG # 09330008-HW-BRAY-008

3-Piece Micro Pure Ball Valve – Series S7500/S7700 is designed for high-purity and aseptic applications in pharmaceutical, biotechnology, semiconductor, and food & beverage industries. Its 316L stainless-steel construction, sanitary surface finish, zero-leakage shutoff, and cleanroom preparation support demanding hygienic process environments.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Series S7500/S7700 Micro Pure Ball Valve features investment-cast CF3M (316L) stainless steel with 15–20 Ra internal wetted-surface finishes and an ASME BPE design. Available in ½–4 in. sizes, it supports temperatures from -46°C to 232°C and pressures up to 1000 psi WOG. PTFE is standard, with TFM 1600 and UHMWPE options. Quick-clamp and extended tube-end connections support sanitary installation, while USP Class VI certification and cleanroom assembly help maintain high-purity requirements.

Specification

Size Range: ½–4 in. (12–100 mm)
Body Material: CF3M
Temperature Range: -50°F to 450°F (-46°C to 232°C)
Stem Material: 316 Stainless Steel
Maximum Operating Pressure: 1000 psi WOG
Seat Materials: Standard: PTFE; Optional: TFM 1600, UHMWPE, Cavity Fillers
Shutoff Rating: Zero Leakage
Ball Material: CF3M
Body Style: Three-Piece
Design Standard: ASME BPE
End Connections: Quick Clamp, Extended Tube End, SAE Male
Testing Standard: MSS SP-61
Certifications: USP Class VI
Ports: Tube Bore Port: ½–2 in.
Face-to-Face: Manufacturer Standard
Steam Rating: 150 psi WSP
Applications: High Purity, Semiconductor, Food & Beverage
