NG # 09330010-HW-BRAY-010

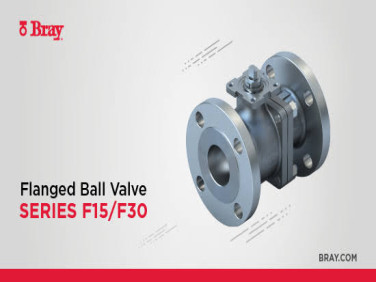

Flanged Floating Ball Valve – Series F15/F30 is a full-port industrial ball valve designed for reliable isolation, low operating torque, and bubble-tight shutoff. Its rugged two-piece construction, fire-safe options, ISO 5211 actuator mounting, and flexible material and seat configurations support a wide range of demanding process applications.
The Series F15/F30 Flanged Floating Ball Valve is available from NPS ½ to 12 (DN 15–300) in CF8M stainless steel, WCB carbon steel, and specialty alloys. F15 is rated ASME Class 150, while F30 is Class 300, with EN 1092 PN10–40 options. TFM 1600 is standard, with PEEK, RPTFE, UHMWPE, Tek-Fil®, and metal seats available. Operating temperatures range from -46°C to 343°C, with API 607 fire-safe options and zero-leakage shutoff.
Size Range: NPS ½–12, DN15–DN300
Body Materials: Stainless Steel (CF8M), Carbon Steel (WCB), Special Alloys
Temperature Range: -50°F to 650°F (-46°C to 343°C)
Stem Material: ASTM A479 Type 316
Maximum Operating Pressure: F15: ASME Class 150; F30: ASME Class 300; EN 1092 PN10, PN16, PN25, PN40
Seat Materials: Standard: TFM 1600; Optional: Tek-Fil®, PEEK, RPTFE, UHMWPE, Metal
Shutoff Rating: Zero Leakage
Ball Material: ASTM A351 Gr CF8M
Body Style: Two-Piece
End Connections: ASME Class 150, 300; EN 1092 PN10, PN16, PN25, PN40
Certifications: API 607, ATEX, CRN, NACE MR0175, NSF 61/372, PED, PE(S)R, SIL, TR CU
Ports: Full Port
Accessories: Body Cavity Fillers, Media Containment Unit, Resolute Square Ball, V Ball, Globe Valve Face-to-Face
Face-to-Face: ASME B16.10
Design Standard: ASME B16.34, API 608
Testing Standard: API 598
Applications: Process, Tank Farms, Fueling, Oil & Gas, Municipal Water Supply
