NG # 09330011-HW-BRAY-011

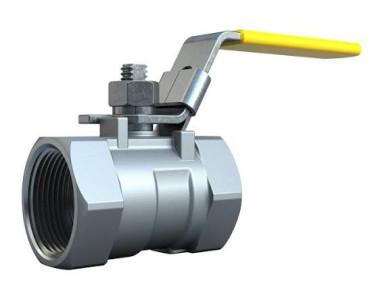

Threaded Ball Valve – Series S40 is a one-piece, manually operated quarter-turn ball valve designed for dependable isolation in industrial and commercial applications. Its 316 stainless-steel construction, blowout-proof stem, low operating torque, and zero-leakage shutoff provide reliable service for general, air, water, oil, and gas applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Series S40 Threaded Ball Valve features a compact one-piece body that minimizes potential leak paths while providing durable performance. Available from ¼ to 2 in. (DN 8–50), it uses CF8M stainless steel, a Type 316 stem and ball, and an RPTFE seat. The valve is rated up to 1,000 psi WOG (69 bar) and operates from -46°C to 232°C. Its reduced-port design and ASME B1.20.1 NPT threaded connections make it suitable for general service, air, water, oil, and gas applications.
Size Range: ¼–2 in. (8–50 mm)
Body Material: ASTM A351 Gr CF8M
Temperature Range: -50°F to 450°F (-46°C to 232°C)
Stem Material: ASTM A479 Type 316
Maximum Operating Pressure: 1000 psi WOG (69 bar)
Seat Material: RPTFE
Shutoff Rating: Zero Leakage
Ball Material: ASTM A479 Type 316
Body Style: One-Piece
Design Standard: MSS SP-110
End Connections: Threaded ASME B1.20.1 NPT
Testing Standard: MSS-SP72
Ports: Reduced Port
Face-to-Face: Manufacturer Standard
Applications: General Service, Air, Water, Oil & Gas
