Electric Valve Actuator – Series 70

  • NG # 09330013-HW-BRAY-013

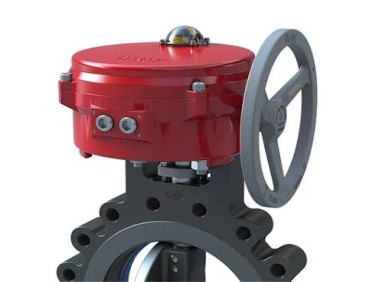

Electric Valve Actuator – Series 70 is a compact, low-profile actuator designed for reliable on/off or modulating quarter-turn valve control. With output torques from 300 to 18,000 in-lb (34–2,034 Nm), manual override, visible valve status indication, and IP65/IP67 protection, it supports demanding industrial automation applications.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Series 70 Electric Actuator combines a space-saving design with convenient wiring, adjustment, and maintenance features. It supports 120/230 VAC or 24 V AC/DC operation, with modulating input options including 4–20 mA and 0–10 V. ISO 5211 mounting, NEMA 4/4X and IP65/IP67 enclosure ratings, adjustable travel-limit cams, and standard manual override provide flexible valve automation. Servo NXT versions also offer EtherNet/IP connectivity for direct PLC integration, diagnostics, and valve-status monitoring.

Specification

Output Torque: 120/230V: 300–18,000 in-lb (34–2034 Nm); 24V: 600 in-lb (68 Nm); 2000 in-lb (226 Nm); 5000 in-lb (565 Nm)
Control Options: On-Off: 120/230 VAC Interposing Relay Board (I.R.B.); 24V: AC/DC Controller; Modulating: Servo NXT Controller; Communication: DeviceNet, EtherNet/IP
Voltages: 120/230 VAC, 50/60 Hz, 1-phase; 24V AC/DC
Power Source: 24–27 VAC or 30–38 VDC; 70-DNS: 120 VAC; 70-NXT: 120/220 VAC, 50/60 Hz, 24V AC/DC
Enclosure Ratings: NEMA 4, 4X; IP65, IP67
Input Signal: On-Off: 120/230 VAC; 24V: AC/DC; Modulating: 4–20 mA, 0–10V, 0–5V, 2–10V
Mounting: ISO 5211
Motor: 120/230 VAC: Single-phase reversible permanent split-capacitor induction motor; 24V: Permanent-magnet brush DC motor
Temperature Range: -20°F (-29°C) to 150°F (+65°C)
Switch Options: 2 SPDT mechanical switches standard; up to 6 total auxiliary switches; optional torque switches
Certifications: UL, CSA, CE approved; 70-24V: CE approved
Valve Compatibility: Quarter-Turn Valve
