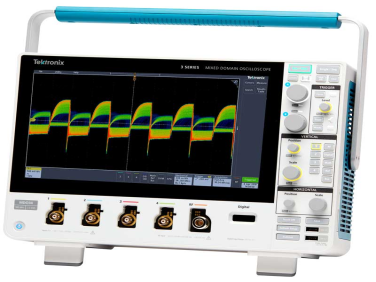

3 Series MDO Mixed Domain Oscilloscope

  • NG # 04406-HW-TEK-005

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Oscilloscope probes should not be overlooked as a key element in the measurement signal path. When you buy a 3 Series MDO you get the industry’s best probes free. Featuring industry-best loading of 3.9 pF to your oscilloscope, the TPP Series probes will be your go-to probe for everyday use.

Specification

  • Bandwidth: 100 MHz
  • Channels: 4
  • Sample Rate: 2.5 GS/s
  • Oscilloscope + Spectrum Analyzer on the same time domain
  • 1 GHz hardware-based spectrum analyzer standard, 3 GHz optional
  • 10 M record length on all channels
  • >280,000 wfm/s maximum waveform capture rate
  • Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz analog bandwidth
  • Spectrum Analyzer
    • Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
    • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (optional)
    • 13 predefined waveform types

Other Tektronix Products

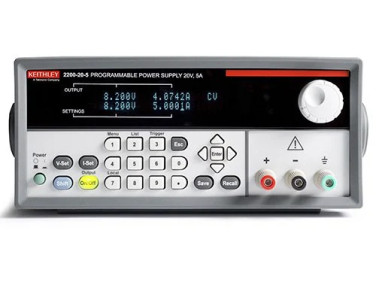

Keithley 2200 DC Power Supply
Tektronix Industrial Tools & Accessories 04403-HW-TEK-002

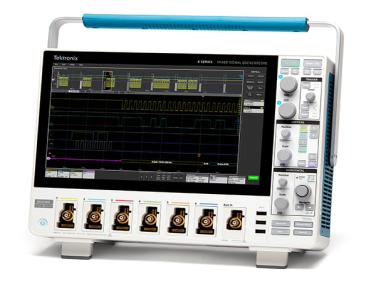

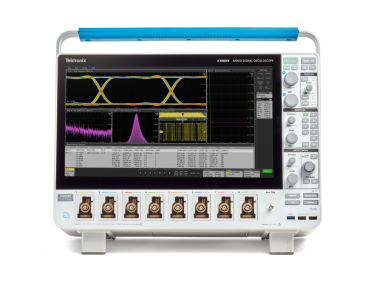

4 Series B MSO Mixed Signal Oscilloscope
Tektronix Industrial Tools & Accessories 04407-HW-TEK-006

5 Series MSO Low Profile
Tektronix Industrial Tools & Accessories 04409-HW-TEK-008

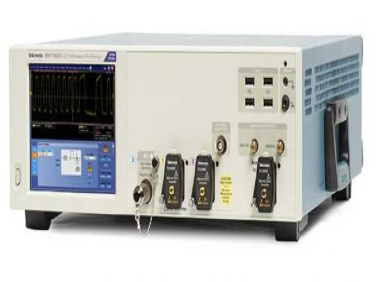

DPO70000SX ATI Performance Oscilloscope
Tektronix Industrial Tools & Accessories 04414-HW-TEK-013

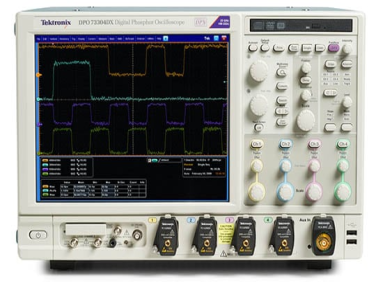

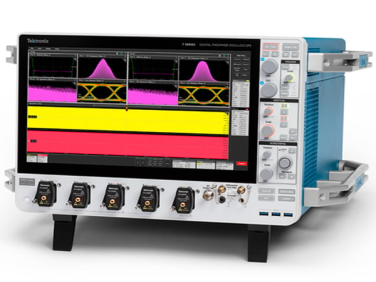

7 Series DPO Digital Phosphor Oscilloscope
Tektronix Industrial Tools & Accessories 04412-HW-TEK-011

6 Series B MSO Mixed Signal Oscilloscope
Tektronix Industrial Tools & Accessories 04410-HW-TEK-009

MSO/DPO70000DX Mixed Signal/Digital Phosphor Oscilloscopes
Tektronix Industrial Tools & Accessories 04413-HW-TEK-012

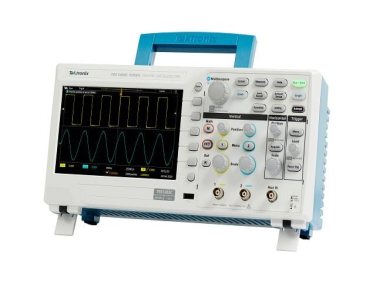

TBS1000C 2 Channel Digital Storage Oscilloscope
Tektronix Industrial Tools & Accessories 04404-HW-TEK-003

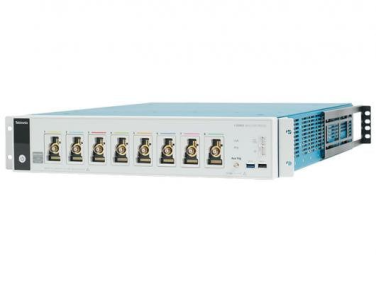

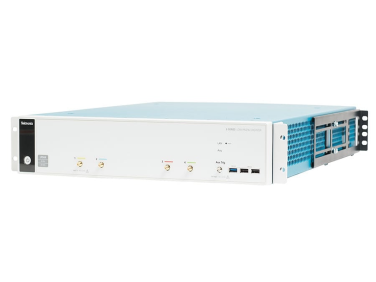

6 Series Low Profile Digitizer
Tektronix Industrial Tools & Accessories 04411-HW-TEK-010

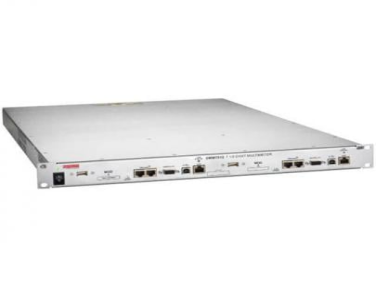

Keithley DMM7512 Dual Channel 7.5 Digit Sampling Multimeter
Tektronix Industrial Tools & Accessories 04416-HW-TEK-015

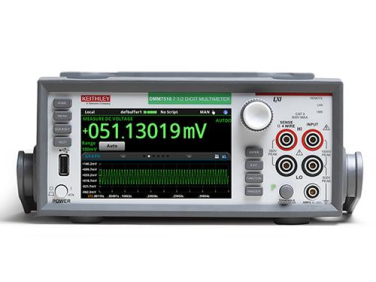

DMM7510 7.5 Digit Graphical Sampling Multimeter
Tektronix Industrial Tools & Accessories 04415-HW-TEK-014

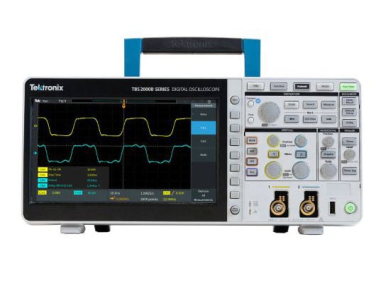

TBS2000B Digital Storage Oscilloscope
Tektronix Industrial Tools & Accessories 04405-HW-TEK-004

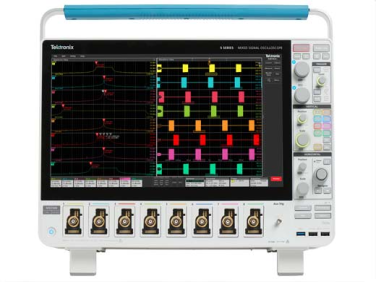

5 Series B MSO 8 Channel Mixed Signal Oscilloscope
Tektronix Industrial Tools & Accessories 04408-HW-TEK-007

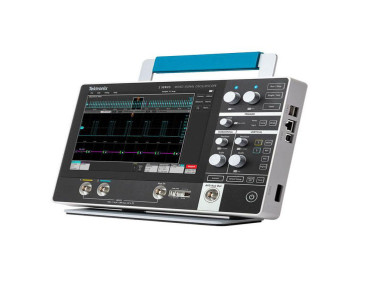

Portable Oscilloscope - 2 Series MSO Mixed Signal
