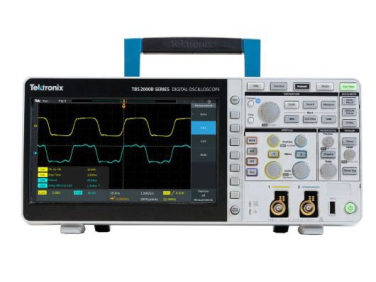

TBS2000B Digital Storage Oscilloscope

  • NG # 04405-HW-TEK-004

The new TBS2000B Digital Storage Oscilloscope is great at performing an oscilloscope's most important jobs - looking at and measuring signals. See more with its bigger 9-inch display with 15 horizontal divisions for more time per screen and 5M record length to capture long time windows.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Measure more with handy cursors and powerful 32 automatic measurements. Share more with Wi-fi connectivity and 100-BaseT Ethernet port. This affordable scope delivers the performance you need.

Specification

Hardware bandwidth limits20 MHz
Input couplingDC or AC
Input impedance1 MΩ ± 1 %, 13 pF ± 1.5 pF
Input sensitivity range1mV/div to 10 V/div
Vertical resolution8 bits
Maximum input voltage, 1 MΩ300 VRMS, Installation Category II; with peaks ≤ ±450 V
Peak DetectCaptures glitches as narrow as 3.5 ns at all sweep speeds.
Time base rangeTBS220xB, TBS207xB, TBS210xB: 1 ns/div to 100 sec/div
Time-base delay time range15 divisions to 5000 s
Time base accuracy±25 ppm over any ≥1 ms interval
