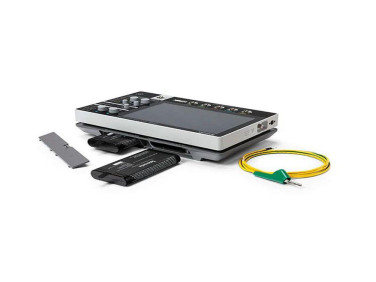

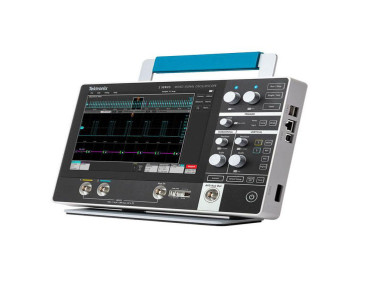

Portable Oscilloscope - 2 Series MSO Mixed Signal

  • NG # 04402-HW-TEK-001

Portable Oscilloscope-2 Series MSO Mixed Signal

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Portable Oscilloscope - 2 Series MSO Mixed Signal Compact, lightweight bench-/field-capable mixed-signal oscilloscope with up to 4 analog channels, optional 16 digital channels (MSO), bandwidth up to 500 MHz, and a high sample rate.

Specification

SpecificationDetails
Analog Channels2 (MSO22) or 4 (MSO24)
Analog Bandwidth Options70 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz
Sample RateUp to 2.5 GS/s
Record Length10 M points per channel
Digital Channels (MSO Option)16 inputs
Arbitrary Function Generator (Optional)50 MHz output
Vertical Resolution8-bit standard, up to 16-bit in high-resolution mode
Display10.1-inch WXGA (1280×800) multi-touch touchscreen
ConnectivityUSB Host/Device, LAN (10/100 Mb/s)
Trigger TypesEdge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, parallel bus
Serial/Bus Decode (Optional)I²C, SPI, UART/RS-232, CAN, LIN, SENT, Automotive Ethernet
Form Factor1.5 in thick, less than 4 lbs (≈1.8 kg)
Power OptionsAC adapter or dual battery pack (up to 8 hours runtime)
Operating SystemEmbedded Linux with touchscreen UI
ApplicationsEmbedded design, automotive, industrial, education, field service
