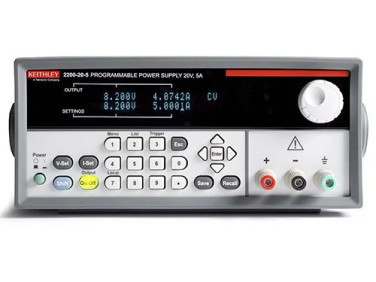

Keithley 2200 DC Power Supply

  • NG # 04403-HW-TEK-002

Keithley 2200 DC Power Supply

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Keithley 2200-60-2 is a single-channel programmable DC power supply delivering up to 60 V, 2.5 A, and 150 W output. It provides precise voltage and current control with low noise and high accuracy, making it ideal for research, development, and production testing. Featuring USB and GPIB interfaces, remote sensing, and a dual-line display, it ensures reliable performance in both manual and automated setups.

Specification

ParameterSpecification
ModelKeithley 2200-60-2
Output Voltage0 – 60 V
Output Current0 – 2.5 A
Maximum Power150 W
Voltage Accuracy± (0.03% + 6 mV)
Current Accuracy± (0.05% + 1.5 mA)
Setting Resolution1 mV / 0.1 mA
Readback Resolution1 mV / 0.1 mA
Load Regulation< 0.01% + 2 mV / < 0.05% + 0.5 mA
Line Regulation< 0.01% + 2 mV / < 0.05% + 0.05 mA
Ripple & Noise (20 Hz–7 MHz)< 1 mV RMS / < 5 mV p-p / < 3 mA RMS
Display TypeDual-line Vacuum Fluorescent
InterfacesUSB, GPIB
Remote SenseSupported
Operating Temperature0°C – 40°C
Power Consumption350 VA
Input Voltage110 V AC (99–132 V RMS) / 220 V AC (198–264 V RMS), 50/60 Hz
Dimensions (H × W × D)106 × 242 × 384 mm (with boot)
Weight7 kg
Safety ApprovalsUL61010-1, EN61010-1, CAN/CSA C22.2 No.61010-1
Included Accessories213-CON connector, CS-1638-12 connector, handle, documentation, driver CD
