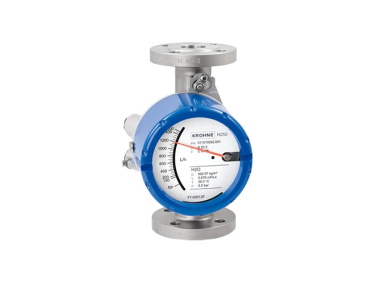

KROHNE H250-F Variable Area Flow Meter

  • NG # 02966-HW-KROHNE-021

Rugged, all-metal flow meter for liquids, gases and saturated steam in hygienic applications.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

  • All-metal design devoid of dead spaces
  • Surface roughness: Ra < 0.8 µm
  • CIP and SIP compatible (200°C)
  • FDA conforming materials
  • Flow rates for liquids:
    • Lower limit: 0.47 gph
    • Upper limit: 4227 gph
  • Flow rates for gases:
    • Lower limit: 0.002 scfm
    • Upper limit: 217 scfm
  • Measuring range: 10:1
  • Accuracy: ±1.6 %
  • Process connections: Tri-clamp connections, DIN 11851, flange, etc
  • Resistant to extreme chemical, mechanical and thermal loads
  • All components replaceable
  • Heating jacket available for the measuring section
  • EHEDG approval

Specification

The KROHNE H250-F variable area flow meter is an all-metal instrument designed specifically for the food and pharmaceutical industries. Combining sanitary design elements with numerous display, communication and other options, the H250-F is a reliable and versatile instrument ideal for measuring the flow of liquids, gases and saturated steam in hygienic applications.

KROHNE H250-F variable area flow meters are available in sizes from 1/2" to 2" with corresponding flow rates ranging from as low as 0.47 gph (0.026 scfm for gases) to as high 4227 gph (217 scfm). The basic accuracy for flow readings is an excellent ±1.6%. Due to its sturdy, all-metal construction, the H250-F ensures high resistance to pressure, temperature and media. The modular design of the meter and indicator allows users to adapt the H250-F to customer-specific applications including those in hazardous areas.

The KROHNE H250-F variable area flowmeter is EHEDG-certified and features smooth stainless steel surfaces. Parts in contact with the medium have a surface roughness of less than 0.8 µm, making it difficult for deposits to stick as well as easy to clean. Combined with a design devoid of dead spaces and stagnation zones, microorganisms cannot stick and multiply. The H250-F can be cleaned (CIP) and sterilized (SIP) while intact. The meter is available with suitable connections and FDA conforming materials for the food and pharmaceutical industries.

The KROHNE H250-F variable area flow meter is available with the following indicator options:

KROHNE M9 Indicator

  • Simple, low-cost installation: Measure and display without auxiliary power supply
  • Large scale for good readability
  • 2 limit switches (NAMUR or 3-wire transistor)
  • 2-wire analog output 4 to 20mA with HART - Profibus PA interface
  • 6-digit flow counter with pulse output (non Ex)
  • Optional stainless steel housing for corrosive atmospheres
  • ATEX, FM, CSA approvals for use in hazardous areas; SIL 2 certified

KROHNE M10 Indicator

  • Digital indicator with I/O
  • 2 limit switches (NAMUR or 3-wire transistor
  • 2-wire analog output 4 to 20mA with HART
  • 12-digit flow counter with pulse output and reset input
  • Pressure resistant, enclosed housing
  • ATEX, FM, CSA approvals for use in hazardous areas
