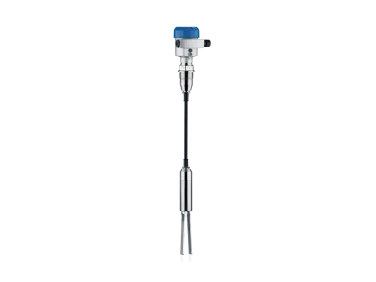

krohne OPTISWITCH 3200 Vibration level switch

  • NG # 03999-HW-KROHNE-033

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The OPTISWITCH 3200 is a vibration level switch with suspension cable for solid applications such as high level alarm on aggregate silos. The flexible suspension cable avoids mechanical strain caused by movements of the bulk solids. It is suitable for applications with a low density (e.g. aerosol) or for the detection of solids in water (e.g. in sedimentation tanks of hydro-electric power stations).

Specification

General information

Product typeLevel switch
Product family nameOPTISWITCH
Product positioningWith cable extension for solid applications
Product variantsOPTISWITCH 3200 C: Compact housing
Measurement variablesLevel
Measurement principleVibrating
Level measurement typePoint level detection
Contact to measured mediumYes
Interface measurementNo
RedundancyNo
Measured mediaSolids, Bulk solids, Granulates, Powders
Probe length0.3…80 m/
1…262 ft
Measuring pointSilo

Operating conditions

Process pressure-1…16 barg/
-14.5…232 psig
Process temperature-20…+80°C/
-4…+176°F

Materials

GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA
Wetted partsAustenitic stainless steel (1.4404/316L)

Process connections

Flange connectionsEN (1092-1): DN50…200
ASME (B 16.5): 2…4
Thread connectionsMale:
G1 ½
1 ½ NPT

Approvals/Standards

Certificates/Approvals ExATEX, EAC Ex, FM, CSA
Certificates/Approvals SafetySIL 2
Ingress protectionIP66/67, NEMA4/4X/6

Communication

Discrete outputs2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor
