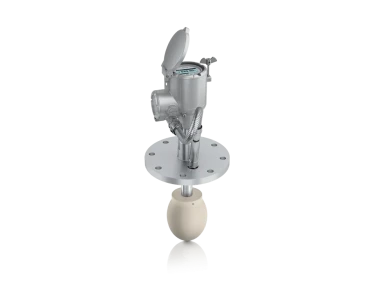

krohne OPTIWAVE-M 7400 Radar level transmitter

  • NG # 04005-HW-KROHNE-039

The OPTIWAVE-M 7400 C is a 2-wire 24 GHz radar (FMCW) level transmitter for non-contact cargo level measurement. This marine level radar is a highly accurate and reliable instrument for ullage indication.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Equipped with heavy-duty stainless steel housing, it is designed to withstand the roughest conditions on ships. If necessary, the signal converter of the level transmitter can be replaced during cargo operations. The Drop antenna option makes it ideal for measuring sticky/contaminating liquids or dust-laden atmospheres where product build-up is likely to occur.

Specification

General information

Product typeLevel transmitter
Product family nameOPTIWAVE
Product positioningFor liquids in the marine industry
Measurement variablesDistance, Level, Mass, Reflection, Volume
Measurement principleRadar (FMCW)
Level measurement typeContinuous measurement
Contact to measured mediumNo
Measured mediaLiquids, Slurries, Pastes, Solids
Measuring range (liquids)0…40 m /
0…132  ft
Measuring range (solids)0...40 m /
0...132  ft
Measuring pointPressurised tank, Open tank, Silo, Bunker

Materials

Wetted partsAustenitic stainless steel (1.4404/316L), Molybdenum (Mo) 3%, Polypropylene (PP), Polytetrafluoroethylene (PTFE)

Process connections

Flange connectionsEN (1092-1): DN125


Approvals/Standards

Certificates/Approvals ExATEX, IECEx
Certificates/Approvals MarineABS, BV, CCS, DNV, GL, KR, LR, NK, RINA
Ingress protectionIP66/67

Communication

Analogue outputs4…20 mA
Digital outputsHART®
