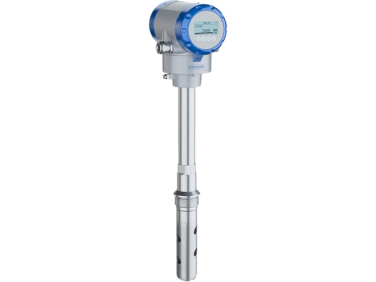

KROHNE OPTIFLEX 7200 Level Transmitter

  • NG # 02968-HW-KROHNE-023

Continuous level and interface measurement in process or storage tanks, reactors and pressure vessels.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The OPTIFLEX  7200 is a 2-wire guided radar level transmitter based on the Time Domain Reflectometry (TDR) technology. With its large choice of probe types and materials, this level transmitter is the high-end guided radar for level and interface measurement in the chemical or oil and gas industries. It is suitable for storage or process tanks up to 60 m / 196.85 ft, containing all kind of liquids – from hydrocarbons like slop oil or benzene to solvents and acids to cooling water or condensate.


The OPTIFLEX 7200 can be used at extended temperature and pressure conditions. Various converter and electronic versions like a remote converter or a sensor extension facilitate the access to the device. The level transmitter has approvals for use in hazardous areas.

Specification

General information

Product typeLevel transmitter
Product family nameOPTIFLEX
Product positioningFor advanced liquid applications
Measurement variablesDistance, Level, Mass, Volume, Dielectric constant
Measurement principleGuided radar (TDR)
Level measurement typeContinuous measurement
Contact to measured mediumYes
Interface measurementYes
Measured mediaLiquids, Liquid/liquid interface
Measuring range (liquids)0.3…60 m/
0.98…196.85 ft
Probe length0.3...60 m
0.98...196.85 ft
Probe diameter
  • Single cable Ø4 mm / 0.16"
  • Single rod Ø8 mm / 0.32"
  • Single rod Ø8 mm / 0.32" (segmented)
  • Single rod (PTFE coated) Ø10 mm / 0.39"
  • Double rod Ø8 mm / 0.32"
  • Double cable Ø4 mm / 0.16"
  • Coaxial Ø22 mm / 0.87"
  • Coaxial Ø22 mm / 0.87" (segmented)
  • Coaxial Ø42 mm / 1.65"
  • Reversed interface probe Ø10 mm / 3.9"
Measuring pointPressurised tank, Stilling well, Bypass

Operating conditions

Process pressure-1… 100 barg/
-14.5… 1450 psig
Process temperature-50…+250°C/
-58…+482°F

Materials

GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, Kalrez® 7075, Polytetrafluoroethylene (PTFE), Ceramic
Wetted partsAustenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22), Polytetrafluoroethylene (PTFE), Ceramic

Process connections

Flange connectionsEN (1092-1): DN25…200/
ASME (B 16.5): 1…8”/
JIS (B 2220): 40…200A
Thread connectionsMale:
G¾, G1, G1½
¾ NPT, 1 NPT, 1½ NPT

Approvals/Standards

Certificates/Approvals OthersNACE
Certificates/Approvals ExATEX, cQPSus, IECEx, NEPSI, INMETRO
Certificates/Approvals SafetySIL 2
Ingress protectionIP66/68, NEMA4X/6P
NAMUR complianceNE 107, NE 21, NE 43, NE 53

Communication

Analogue outputs4…20 mA
Discrete outputsRelay
Digital outputsHART®

Accuracy

Accuracy (liquids)±2 mm/
±0.08 in
