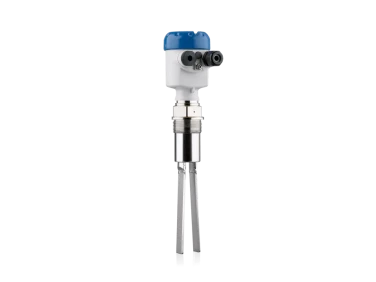

krohne OPTISWITCH 5100 Vibration level switch

NG # 03995-HW-KROHNE-029

The OPTISWITCH 5100 is a vibration level switch for liquids in process applications. It is a universal and reliable device for limit level detection in vessels. It detects low or high level and is used for overfill, dry-run or pump protection. Installations in pipelines are also possible.

Manufactured By :

KROHNE

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Vibration level switch for process applications

Point level detection of liquids

Large choice of process fittings, housings and electronics

Density: ≥0.5 g/cm3 / 0.018 lb/in3

-50…+250°C / -58…+482°F; -1…64 barg / -14.5…928 psig

Specification

General information

Product type	Level switch
Product family name	OPTISWITCH
Product positioning	For process applications
Product variants	OPTISWITCH 5100 C: Compact housing
Measurement variables	Level
Measurement principle	Vibrating
Level measurement type	Point level detection
Contact to measured medium	Yes
Interface measurement	No
Redundancy	No
Measured media	Liquids
Probe length	80…6000 mm/ 3…236 in
Measuring point	Pressurised tank, Open tank, Open channel, Basin

Operating conditions

Process pressure	-1…64 barg/ -14.5…925 psig
Process temperature	-50…+250°C/ -58…+482°F

Materials

Gaskets	Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA
Wetted parts	Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/alloy C4), Ethylene ChloroTriFluoroEthylene (ECTFE), Enamel, Perfluoroalkoxy alkane (PFA)

Process connections

Flange connections	EN (1092-1): DN25…150 ASME (B 16.5): 1…6
Thread connections	Male: G¾, G1 ¾ NPT, 1 NPT, 1 ½ NPT, 2 NPT

Approvals/Standards

Certificates/Approvals Others	WHG
Certificates/Approvals Ex	ATEX, EAC Ex, FM, CSA
Certificates/Approvals Marine	GL, LR
Certificates/Approvals Safety	SIL 2
Ingress protection	IP66/67, NEMA4/4X/6

Communication

Discrete outputs

2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor
