NG # 02961-HW-KROHNE-016
3 beam, inline, Ultrasonic Flow Meter designed for measuring homogeneous conductive and non-conductive liquids.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

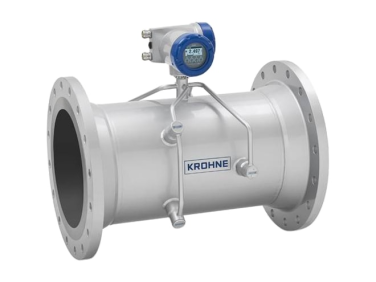

Get A QuoteThe OPTISONIC 3400 is a 3-path ultrasonic inline flowmeter designed for a wide range of standard or more demanding process applications with homogeneous, non-viscous aqueous liquids as well as viscous fluids of up to over 1000 cSt. It is also the perfect choice for applications with cryogenic products (as low as -200°C / -328°F), media with extended temperature ranges (up to +250°C / +482°F) as well as low or extreme pressure ratings. The OPTISONIC 3400 offers a broad range of diameters – from DN25 / 1" for dosing purposes to DN3000 / 120" for water transportation pipelines.
Based on the transit time method, the 3 parallel acoustic paths of the flowmeter allow bi-directional measurement independent of flow profile for high accuracy even under less favourable flow profile conditions (e.g. short inlet and outlet runs). By means of the velocity of sound, the device is also able to identify process changes or liquid pollution. Its fully welded construction does not cause any pressure loss and is maintenance-free. The OPTISONIC 3400 is available with flange as well as welded connections. It features enhanced diagnostics and provides various digital communication options.
The KROHNE OPTISONIC 3400 Flow Meter is a 3-beam, inline, ultra sonic flowmeter, designed especially for measuring homogeneous conductive and non-conductive liquids, with high accuracy and reproducibility, over a long period of time. KROHNE is a main supplier for ultrasonic in-line process flowmeters for liquids with the largest installed base / proven record in terms of robustness and measurement accuracy.
The OPTISONIC 3400 Flow Meter features advanced meter diagnostics providing extensive self-checking of internal circuits and information regarding the health of the measuring sensor, but just as importantly, vital information about the process and process conditions.
Another unique feature of the OPTISONIC 3400 is the free of charge measurement of velocity of sound per acoustic path. For instance, this can supply information about pollution in the liquid, or changes in the process conditions.
Applications for the OPTISONIC 3400 include:
