KROHNE OPTISONIC 6300 Stationary Clamp On Flow Meter

  • NG # 02962-HW-KROHNE-017

Clamp-on flow meter that can be fitted on the outside of piping to measure the flowrate of liquids.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

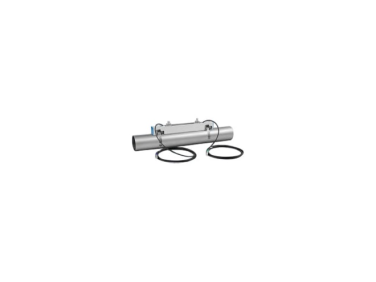

The OPTISONIC 6300 is an ultrasonic clamp-on flowmeter for permanent mount installation. It is particularly suitable for flow measurement of (non-)conductive liquids at any location where inline measurement is not possible or desirable. The flowmeter consists of a stainless steel sensor rail with two integrated transducers or for large pipe sizes of a sensor rail set with two rails and integrated transducers in each rail. Any version comes with a wall-mounted or field mounted ultrasonic signal converter. Its robust clamp-on rail is highly flexible and can be very easily attached to virtually any pipe up to DN4000 / 160".


Typical applications of the clamp-on flowmeter include flow measurement of a broad range of refined hydrocarbons, demineralised water or chemicals as well as measurements in hygienic applications. A clamp-on version for extended temperature ranges up to +200°C / +392°F is also available. The OPTISONIC 6300 has approvals for use in hazardous areas and offers various digital communication options.

Specification

The KROHNE OPTISONIC 6300 Stationary Clamp On Flow Meter stands for continuity and long term reliability. Flow measurement can be done anywhere and start-up is immediate. The new OPTISONIC 6300 clamp-on flowmeter for liquids with its robust industrial construction and regreasing concept provides a revolutionary solution for easy handling. It can be fitted on the outside of piping to measure the flow rate of liquids.

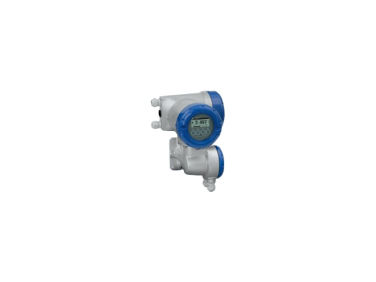

The clamp-on flowmeter is a combination of one up to two OPTISONIC 6000 clamp-on sensor(s) and one UFC 300 ultrasonic signal converter. The overall functionality of the clamp-on flowmeter is the continuous measurement of actual volume flow, mass flow, flow speed, velocity of sound, gain, SNR and diagnosis value.

Industries include:

  • Chemicals
  • Petrochemicals
  • Power plants
  • Water
  • Oil & Gas
  • Semi-conductor
  • Food & Beverages
  • Pharmaceuticals

Applications include:

  • Chemical addition
  • General process control
  • Cooling water circuits
  • Broad range of refined hydrocarbons
  • Potable water
  • De-ionized and demineralized water
  • Sanitary flow rate measurements
  • Purified water
