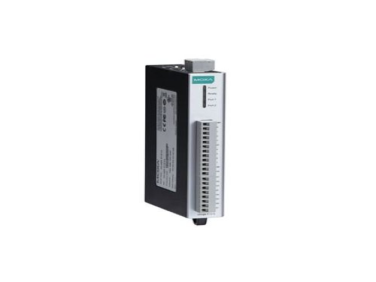

In the rapidly evolving field of industrial automation, having reliable and flexible controllers is crucial. The MOXA ioLogik E1200 Series Universal Controllers & I/Os stand out as exceptional solutions designed to meet a variety of automation needs. These devices offer a perfect blend of versatility, efficiency, and ease of use, making them indispensable for modern industrial environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteAdvanced Networking Capabilities
The MOXA ioLogik E1200 Series supports multiple network protocols, including Modbus/TCP and EtherNet/IP, facilitating easy integration into existing systems. Moreover, the dual Ethernet ports enable daisy-chain topology, reducing cabling costs and simplifying network design.
Flexible I/O Configuration
With a wide range of I/O modules available, the E1200 Series allows for customized configuration tailored to specific application requirements. Whether you need digital inputs, analog outputs, or a mix of both, the E1200 Series has you covered.
Robust and Reliable Performance
Built to withstand harsh industrial environments, the MOXA ioLogik E1200 Series features an industrial-grade design with high EMC resistance and wide operating temperature ranges. This ensures reliable performance even under extreme conditions.
User-Friendly Interface and Setup
Setting up the E1200 Series is a breeze, thanks to its intuitive web-based interface and easy-to-use configuration tools. Additionally, the controllers support remote monitoring and management, allowing for efficient operation and maintenance.
| Category | Specification | Model |
|---|---|---|
| Digital Input Channels | 16 | E1210 |
| 8 | E1212, E1213 | |
| 6 | E1214 | |
| 4 | E1242 | |
| Digital Output Channels | 16 | E1211 |
| 4 | E1213 | |
| Configurable DIO Channels | 8 | E1212 |
| 4 | E1213, E1242 | |
| Relay Channels | 6 | E1214 |
| Analog Input Channels | 8 | E1240 |
| 4 | E1242 | |
| Analog Output Channels | 4 | E1241 |
| RTD Channels | 6 | E1260 |
| Thermocouple Channels | 8 | E1262 |
| Isolation | 3k VDC or 2k Vrms | All models |
| Buttons | Reset button | All models |
| Digital Inputs | Connector: Screw-fastened Euroblock terminal | |
| Sensor Type: Dry contact, Wet contact (NPN or PNP) | ||
| I/O Mode: DI or event counter | ||
| Dry Contact: On: short to GND, Off: open | ||
| Wet Contact (DI to COM): On: 10 to 30 VDC, Off: 0 to 3 VDC | ||
| Counter Frequency: 250 Hz | ||
| Digital Filtering Time Interval: Software configurable | ||
| Points per COM: E1210/E1212: 8, E1213: 12, E1214: 6, E1242: 4 | ||
| Digital Outputs | Connector: Screw-fastened Euroblock terminal | |
| I/O Type: Sink (E1211/E1212/E1242), Source (E1213) | ||
| I/O Mode: DO or pulse output | ||
| Current Rating: 200 mA (E1211/E1212/E1242), 500 mA (E1213) | ||
| Pulse Output Frequency: 500 Hz (max.) | ||
| Over-Current Protection: 2.6 A (E1211/E1212/E1242), 1.5 A (E1213) | ||
| Over-Temperature Shutdown: 175°C (typical), 150°C (min.) | ||
| Over-Voltage Protection: 35 VDC | ||
| Relays | Connector: Screw-fastened Euroblock terminal | |
| Type: Form A (N.O.) power relay | ||
| I/O Mode: Relay or pulse output | ||
| Pulse Output Frequency: 0.3 Hz at rated load (max.) | ||
| Contact Current Rating: 5 A @ 30 VDC, 250 VAC, 110 VAC | ||
| Contact Resistance: 100 milli-ohms (max.) | ||
| Mechanical Endurance: 5,000,000 operations | ||
| Electrical Endurance: 100,000 operations @ 5 A resistive load | ||
| Breakdown Voltage: 500 VAC | ||
| Initial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDC | ||
| Note: Ambient humidity must be non-condensing and remain between 5 and 95% | ||
| Analog Inputs | Connector: Screw-fastened Euroblock terminal | |
| I/O Mode: Voltage/Current | ||
| I/O Type: Differential | ||
| Resolution: 16 bits | ||
| Input Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA | ||
| Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C | ||
| Sampling Rate: 12 samples/sec per module (E1240: up to 8 channels, E1242: up to 4 channels) | ||
| Built-in Resistor for Current Input: 120 ohms | ||
| Input Impedance: 10 mega-ohms (min.) | ||
| Analog Outputs | Connector: Screw-fastened Euroblock terminal | |
| I/O Mode: Voltage/Current | ||
| Output Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA | ||
| Resolution: 12-bit | ||
| Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C | ||
| Load (Current Mode): Internal power: 400 ohms (max.), 24 V external power: 1000 ohms (max.) | ||
| Voltage Output Short-Circuit Protection: 10 mA | ||
| RTDs | Connector: Screw-fastened Euroblock terminal | |
| Sensor Type: PT1000, PT50, PT100, PT200, PT500 | ||
| Resistance Type: 310, 620, 1250, 2200 ohms | ||
| Input Connection: 2- or 3-wire | ||
| Sampling Rate: 12 samples/sec per module (up to 6 channels) | ||
| Resolution: 0.1°C or 0.1 ohms | ||
| Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C | ||
| Thermocouples | Connector: Screw-fastened Euroblock terminal | |
| Sensor Type: J, K, T, E, R, S, B, N | ||
| Millivolt Type: ±19.532 mV, ±39.062 mV, ±78.126 mV | ||
| Fault and Over-Voltage Protection: -35 to +35 VDC (power off), -25 to +30 VDC (power on) | ||
| Resolution: 16 bits | ||
| Millivolt Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C | ||
| TC Accuracy: Types J, T, E, S, B: ±5°C, Types K, R, N: ±8°C | ||
| CJC Accuracy: ±0.5°C @ 25°C, ±1.5°C @ -40 to 75°C | ||
| Sampling Rate: 12 samples/sec per module (up to 8 channels) | ||
| Input Impedance: 10 mega-ohms (min.) | ||
| Ethernet Interface | 10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass) | |
| Magnetic Isolation Protection: 1.5 kV (built-in) | ||
| Ethernet Software Features | Configuration Options: Web Console (HTTP), Windows Utility (ioSearch), MCC Tool | |
| Industrial Protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter | ||
| Management: RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP | ||
| MIB: Device Settings MIB | ||
| Security: Access control list | ||
| Security Functions | Authentication: Local database | |
| LED Interface | LED Indicators: Power, Ready, Port 1, Port 2 | |
| Modbus TCP | Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 | |
| Mode: Server (Slave) | ||
| Max. No. of Client Connections: 10 | ||
| EtherNet/IP | Mode: Adapter | |
| Max. No. of Scanner Connections: 9 (read-only), 1 (read/write) | ||
| Power Parameters | Power Connector: Screw-fastened Euroblock terminal | |
| No. of Power Inputs: 1 | ||
| Input Voltage: 12 to 36 VDC | ||
| Power Consumption: 110 mA to 200 mA @ 24 VDC depending on model | ||
| Physical Characteristics | Housing: Plastic | |
| Dimensions: 27.8 x 124 x 84 mm | ||
| Weight: 200 g | ||
| Installation: DIN-rail mounting, Wall mounting | ||
| Wiring: I/O cable, 16 to 26 AWG; Power cable, 12 to 24 AWG | ||
| Environmental Limits | Operating Temperature: -10 to 60°C (Standard), -40 to 75°C (Wide Temp.) | |
| Storage Temperature: -40 to 85°C | ||
| Ambient Relative Humidity: 5 to 95% (non-condensing) | ||
| Altitude: 4000 m | ||
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4 | |
| EMI: CISPR 32, FCC Part 15B Class A | ||
| EMS: IEC 61000-4-2/3/4/5/6/8 | ||
| Hazardous Locations: ATEX, Class I Division 2 | ||
| Safety: UL 508 | ||
| Shock: IEC 60068-2-27 | ||
| Freefall: IEC 60068-2-32 | ||
| Vibration: IEC 60068-2-6 | ||
| Declaration | Green Product: RoHS, CRoHS, WEEE | |
| MTBF | ioLogik E1210: 671,345 hrs | |
| ioLogik E1211: 923,027 hrs | ||
| ioLogik E1212: 561,930 hrs | ||
| ioLogik E1213: 715,256 hrs | ||
| ioLogik E1214: 808,744 hrs | ||
| ioLogik E1240: 474,053 hrs | ||
| ioLogik E1241: 888,656 hrs | ||
| ioLogik E1242: 502,210 hrs | ||
| ioLogik E1260: 660,260 hrs | ||
| ioLogik E1262: 631,418 hrs | ||
| Standards | Telcordia SR332 |
