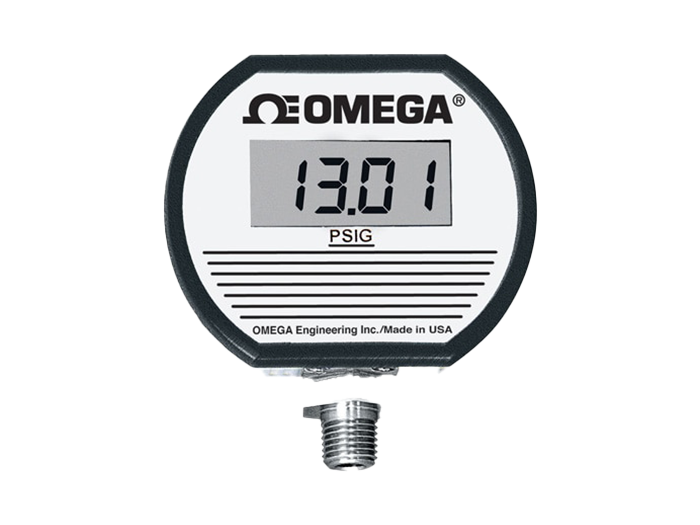

Omega High Accuracy, Digital Pressure Gauge with NIST Certification

  • NG # 02520-HW-Omega-011

  • MF # DPG1001B-100G

  • SKU # DPG1001B-100G

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DPG1001 series is a versatile family of industrial pressure gauges. All DPG1001 models feature a large 13 mm H (1/2") digital display in a rugged, splashproof extruded aluminum case.

A 1/4-18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel.

The DPG1001 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure ranges are available. The DPG1001 series also features ±0.10% accuracy, 2X overpressure and 4X burst specifications.

Specification

Burst Pressure 4x rated pressure min
Display Digit Height 13 mm
Maximum Compensation Temperature 70°C (158°F)
Maximum Storage Temperature 95°C (203°F)
Measurement Units PSIG
Minimum Storage Temperature
-55°C (-67°F)
Repeatability +/-0.10% FSO or better
Wetted Materials 316 Stainless Steel
Accuracy Value ±0.10% FSO or better
Maximum Ambient Temperature 85°C (185°F)
Maximum Amp Rating 0.005
Measurement Type Pressure
Minimum Compensation Temperature 0°C (32°F)
Number of Display Digits 3.5
Sample Rate 3 readings per second
