NG # 05680007-HW-FLEXIM-007

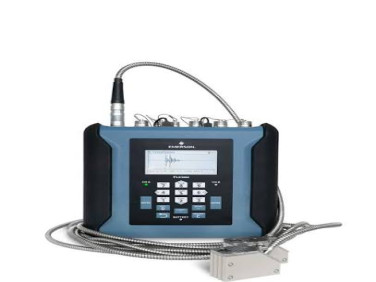

Portable Clamp-on Ultrasonic Flow and Energy Meter – FLUXUS G631 EE provides non-intrusive measurement of gases and liquids with integrated thermal energy calculation. It supports natural gas, compressed air, technical gases, and liquid applications, while detecting low flow velocities down to 0.01 m/s for leak surveys and consumption verification.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Flexim FLUXUS G631 EE combines portable ultrasonic flow measurement with thermal energy monitoring for energy management and process verification. Its clamp-on design enables measurement without pipe modification, while flow disturbance correction supports reliable readings under short inlet conditions. The instrument provides up to 24 hours of operation and an Energy Saver Mode of up to 80 days. Temperature inputs support HVAC, chiller, and cooling-tower energy calculations, while the optional Dynamic Gas Meter compensates for gas density and compressibility variations.
Flow Velocity: 0.01–35 m/s (0.03–115 ft/s)
Process Media: Acoustically conductive gases and liquids
Process Temperature: -40–200°C (-40–392°F), extendable with WaveInjector
Ambient Temperature: -20–60°C (-4–140°F)
Process Pressure: Plastic Pipe: 1+ bar(a); Metal Pipe: 10+ bar(a)
Communication: Modbus RTU optional
Accuracy: ±0.3% MV ±0.005 m/s; measuring point ±1–2% MV ±0.005 m/s
Repeatability: ±0.15% of reading ±0.005 m/s
Flow Channels: 2
Power Supply: 100–240 V AC; 10.5–13.5 V DC; Integrated Battery
Pipe Size: 7 mm–1.6 m (0.28–63 in.)
Output: 2 Switchable Current Outputs, 2 Digital Outputs
Input: 2 Temperature Inputs, 2 Current Inputs
Approval: Safe Area Only
Transducers: Lamb Wave 4 MHz–150 kHz; Shear Wave 8 MHz–200 kHz
