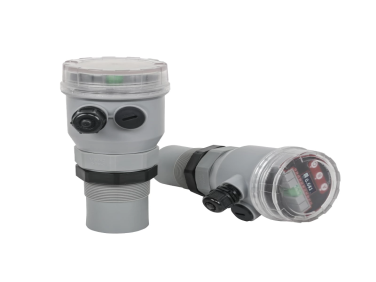

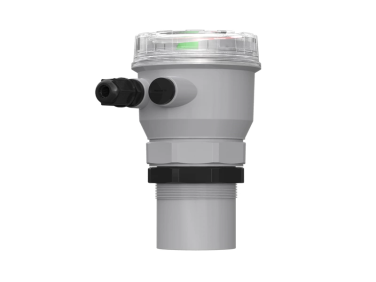

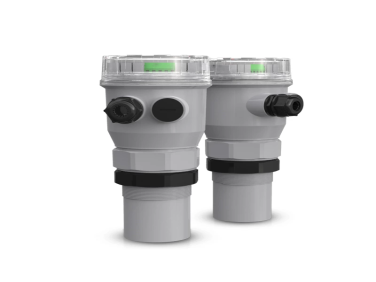

SUP-ZP Ultrasonic level transmitter

  • NG # 04086-HW-SUPMEA-041

The SUP-ZP Ultrasonic Level Meter is a non-contact, digital ultrasonic level transmitter designed for precise measurement of liquid level in tanks, open channels, and vessels. It features advanced digital temperature compensation, strong anti-interference performance, flexible output options, and on-site OLED display, making it suitable for a wide range of industrial monitoring and control applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP-ZP ultrasonic level transmitter is a universal level measuring instrument with digitalized and user-friendly design. It provides reliable level monitoring, data transmission, and human-machine communication. The device uses an imported main chip with dedicated integrated circuits for digital temperature compensation, improving measurement stability and accuracy. It allows free setting of upper and lower limits, online output adjustments, and offers multiple optional output interfaces for integration into industrial control systems. The meter is built with rugged materials and optional ingress protection for harsh environments.

Specification

Model and Measurement

  • Product type: Ultrasonic level transmitter
  • Model: SUP-ZP
  • Measurement range options: 5 m, 10 m, 15 m
  • Blind zone: 0.4 m (5 m range), 0.5 m (10 m range), 0.6 m (15 m range)
  • Accuracy: 0.3% F.S.

Display and Interface

  • Display: OLED on-site display
  • Electrical interface: M20x1.5 threaded connection

Output Options

  • Standard output: 4-20 mA (RL < 600Ù)
  • Optional outputs:
    • RS485 communication
    • HART (two-wire)
    • Voltage outputs (1-5 V, 1-10 V)
    • Two relay contacts (AC 5 A / 250 V, DC 10 A / 24 V)

Power and Environmental

  • Power supply:
    • DC: 12-24 VDC standard
    • DC: 18-28 VDC (two-wire option)
    • AC: 220 VAC option
  • Power consumption: < 1.5 W
  • Materials: ABS, polypropylene (PP) housing
  • Protection rating: IP65 standard (IP68 optional)

Additional

  • Frequency range: 20-350 kHz (approximate typical ultrasonic frequency band)
  • Designed for non-contact liquid level measurement in industrial environments.
