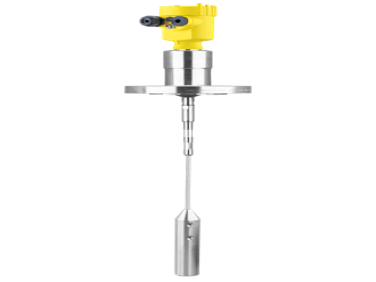

VEGAFLEX 81 TDR Guided Radar sensor

  • NG # 0394409-HW-VEGA-409

VEGAFLEX 81 is a universal guided-wave radar (TDR) sensor for continuous level and interface measurement of liquids. It delivers reliable, maintenance-free measurement even with steam, foam, condensation, or buildup, with flexible cable, rod, and coaxial probe options.



Manufactured By :
VEGA
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

VEGAFLEX 81 level sensor measures maintenance-free all kind of liquids. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 81 is the economical solution for various level and interface measurements.The VEGAFLEX 81 provides accurate level and interface measurement across demanding liquid applications,

Specification

Measuring Range – Distance: 75 m
Process Temperature: -60 to 200°C
Process Pressure: -1 to 40 bar
Accuracy: ±2 mm

Threaded Connection: ≥ G¾, ≥ ¾ NPT
Flange Connection: ≥ DN25, ≥ 1"

Seal Materials: EPDM, FKM, FFKM, Silicone FEP Coated, Borosilicate Glass

Housing Materials: Plastic, Aluminium, Stainless Steel (Precision Casting), Stainless Steel (Electropolished)

Protection Rating: IP66/IP68 (0.2 bar), IP66/IP67, IP66/IP68 (1 bar)

Output: PROFIBUS PA, FOUNDATION Fieldbus, Two-Wire 4–20 mA/HART, Modbus, Four-Wire 4–20 mA/HART

Ambient Temperature: -40 to 80°C

Other VEGA Products

VEGAPULS 42 Compact Radar Level Sensor
VEGA Industrial Tools & Accessories 0394402-HW-VEGA-402

VEGASWING 61 Vibrating Level Switch
VEGA Industrial Tools & Accessories 0394414-HW-VEGA-414

VEGAMIP T61 Microwave Level Emitter
VEGA Industrial Tools & Accessories 0394419-HW-VEGA-419

VEGAPULS 31 Compact Radar Sensor
VEGA Industrial Tools & Accessories 0394408-HW-VEGA-408

VEGASWING X Vibrating Level Switch
VEGA Industrial Tools & Accessories 0394415-HW-VEGA-415

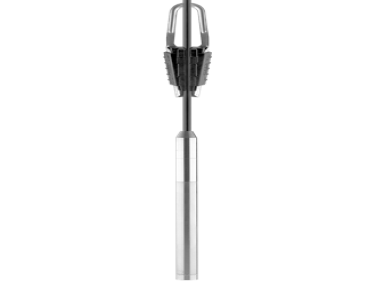

VEGAWELL 52 Submersible Pressure Transmitter
VEGA Industrial Tools & Accessories 0394424-HW-VEGA-424

VEGAPULS C 11 Wired Radar Level Sensor
VEGA Industrial Tools & Accessories 0394404-HW-VEGA-404

VEGAFLEX 86 TDR Guided Radar Sensor
VEGA Industrial Tools & Accessories 0394411-HW-VEGA-411

VEGAPULS 21 Compact Radar Sensor
VEGA Industrial Tools & Accessories 0394407-HW-VEGA-407

VEGAPULS 11 Compact Radar Sensor
VEGA Industrial Tools & Accessories 0394406-HW-VEGA-406

VEGAPULS 6X Radar Level Sensor
VEGA Industrial Tools & Accessories 0394401-HW-VEGA-401

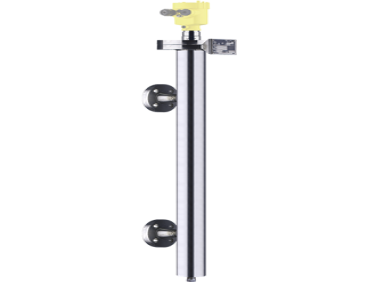

VEGAPASS 81 Bypass System
VEGA Industrial Tools & Accessories 0394412-HW-VEGA-412

MINITRAC 31 Radiometric Sensor
VEGA Industrial Tools & Accessories 0394421-HW-VEGA-421

VEGAPULS C 22 Wired Radar Level Sensor
VEGA Industrial Tools & Accessories 0394405-HW-VEGA-405

VEGAKON 66 Conductive Level Switch
VEGA Industrial Tools & Accessories 0394416-HW-VEGA-416

VEGASWING 51 Vibrating Level Switch
VEGA Industrial Tools & Accessories 0394413-HW-VEGA-413

VEGABAR 38 Pressure Sensor
VEGA Industrial Tools & Accessories 0394423-HW-VEGA-423

VEGABAR 18 Pressure Transmitter
VEGA Industrial Tools & Accessories 0394425-HW-VEGA-425

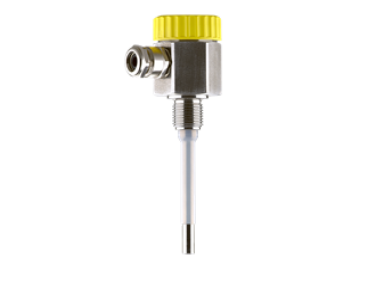

EL 8 Conductive Rod Level Switch
