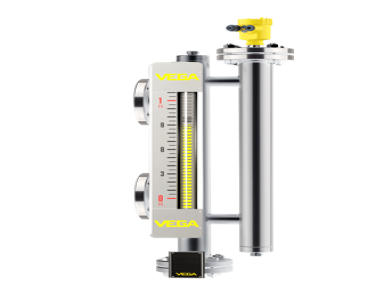

VEGAPASS 81 Bypass System

  • NG # 0394412-HW-VEGA-412

VEGAPASS 81 is a bypass system designed for continuous external level measurement when combined with VEGAFLEX guided-wave radar sensors. Its communicating standpipe maintains the same liquid level as the vessel, enabling reliable measurement without direct installation inside the vessel.





Manufactured By :
VEGA
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The VEGAPASS 81 provides an external measurement arrangement for challenging level applications, using a laterally mounted standpipe connected to the vessel through two process fittings. It supports a 4 m measuring range, -196 to +450°C process temperature, and 0 to 205 bar process pressure. The system can be combined with VEGAFLEX sensors for continuous level measurement and is suitable for demanding industrial process environments.

Specification

Measuring range - Distance: 4 m [Meter - Foot]

Process temperature: -196 ... 450 °C [°C - °F]

Process pressure: 0 ... 205 bar [Bar - kPa - psi]
