NG # 0394404-HW-VEGA-404
VEGAPULS C 11 is a compact wired 80 GHz radar sensor for continuous, non-contact level measurement of liquids and bulk solids. Designed for simple applications, it provides ±5 mm accuracy, up to 10 m measuring range, maintenance-free operation, and high IP66/IP68 protection.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe VEGAPULS C 11 delivers reliable level measurement in water treatment, pumping stations, rain overflow basins, open channels, and small bulk-solid containers. Its non-contact 80 GHz radar technology provides measurement independent of the medium and environmental conditions. The sensor offers a 10 m range, 4–20 mA output, -40 to +60°C operating temperature, and -1 to 3 bar process pressure. PVDF wetted parts and IP66/IP68 protection make it well suited to demanding outdoor and wastewater applications.
Measuring Range – Distance: 10 m
Process Temperature: -40 to 60°C
Process Pressure: -1 to 3 bar
Accuracy: ±5 mm / ±0.2"
Frequency: 80 GHz
Beam Angle: 8°
Wetted Parts Material: PVDF
Threaded Connection: G1½ / G1, 1½ NPT / 1 NPT, R1½ / R1
Seal Material: FKM
Protection Rating: IP66/IP68 (3 bar), Type 6P
Output: 4–20 mA
Ambient Temperature: -40 to 60°C
VEGAPULS Air 41 — Autarkic Radar Level Sensor

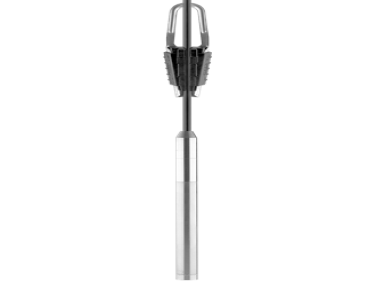

VEGAWELL 52 Submersible Pressure Transmitter
