Overview

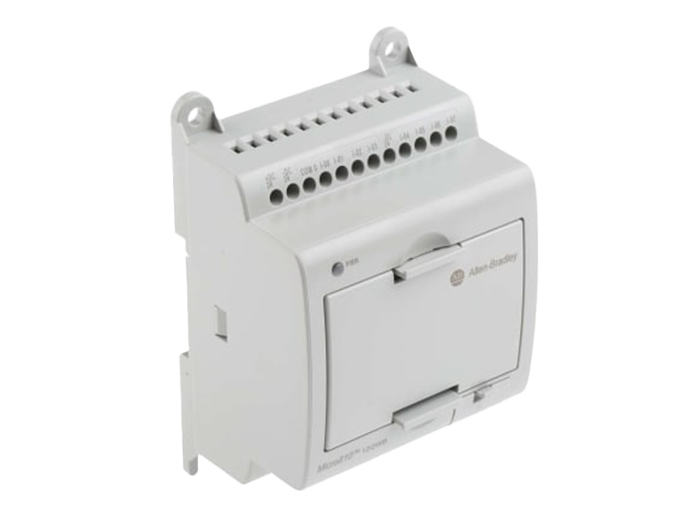

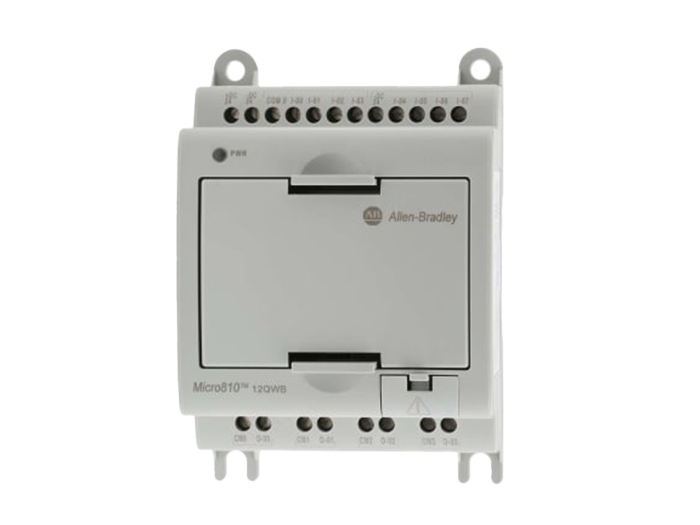

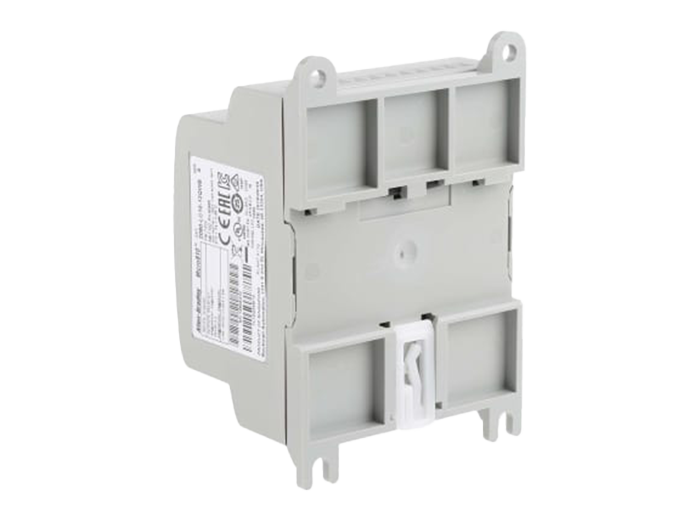

Allen Bradley Micro PLC, 8 Inputs, 4 Outputs - Micro810 Series - 2080-LC10-12QWB


This PLC (programmable logic controller) from Rockwell Automation's Allen Bradley range is optimized for the control of small, standalone industrial machines. The versatile device functions as a smart relay and features technologically advanced programming abilities that are user-friendly and compatible with a wide range of network interfaces. A handy status indicator quickly lets you know when a system error occurs. This device is suitable for panel or DIN rail mounting.


Features and Benefits


• 8A outputs eliminate the need for external relays
• Functions as a backup memory module for peace of mind
• Includes an embedded USB (universal serial bus) port for versatility
• Wide operating temperature range of -20°C to +65°C so suitable for most industrial environments


Standards and Certifications


• UL (Underwriters' Laboratories)
• C-Tick (electromagnetic compatibility)
• CE (Conformité Européene)


Where is the safest area to mount this PLC?


Ideally, your controller should be located as far away as possible from power lines, load lines and other sources of electrical noise, such as hard contact switches and AC motor drives. Choose a mounting surface that's well-grounded, as this unit is sensitive to electrostatic discharge. You can protect the PLC from harmful environmental exposure and electrical interference by using an industrial enclosure.

Specification

Manufacturer SeriesMicro810
Number of Inputs8
Output TypeRelay
Input TypeAnalogue, Digital
Voltage Category24 V dc
Number of Outputs4
Network TypeUSB
Kit IncludedYes
Minimum Operating Temperature-20°C
Programming Language UsedFunction Block, Ladder Logic, Structured Text
Maximum Operating Temperature+65°C
Dimensions91 x 75 x 59 mm
Program Capacity2 kB
Depth59mm
Memory4 kB
Number of Communication Ports1
Width75mm
Length91mm
