Allen Bradley Micro830 Series PLC CPU for Use with Micro800 Series, Digital Output, 28-Input, Digital Input

  • NG # 02684-HW-ALBR-023

  • MF # 2080-LC30-48QWB

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

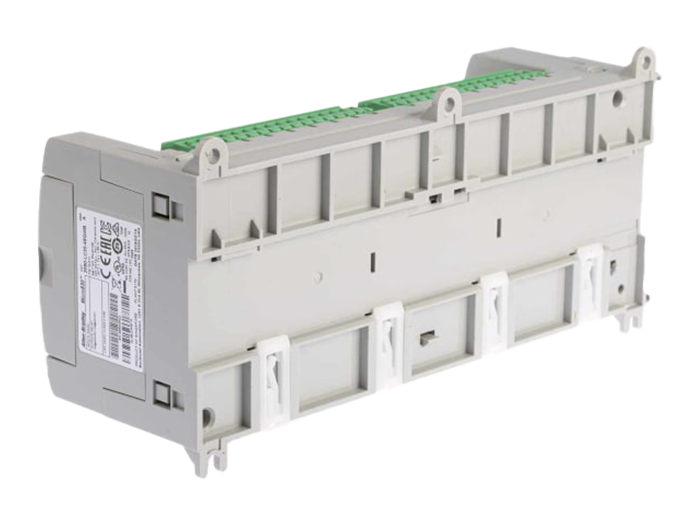

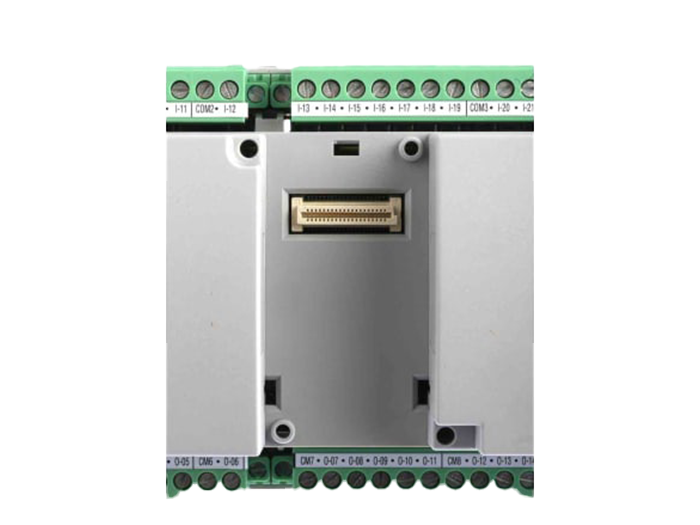

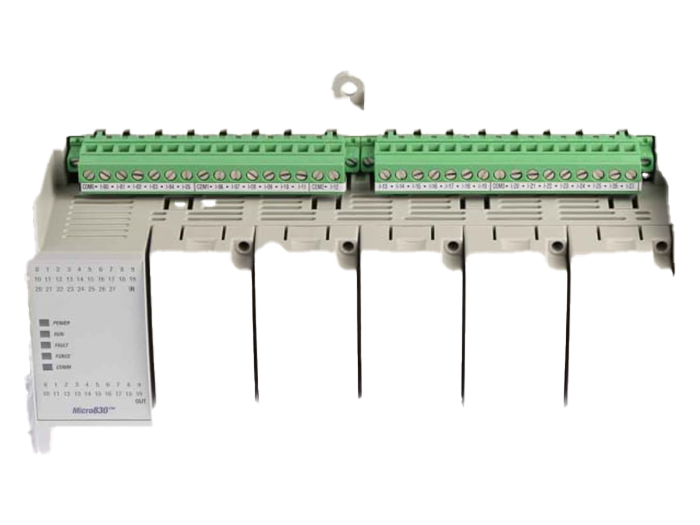

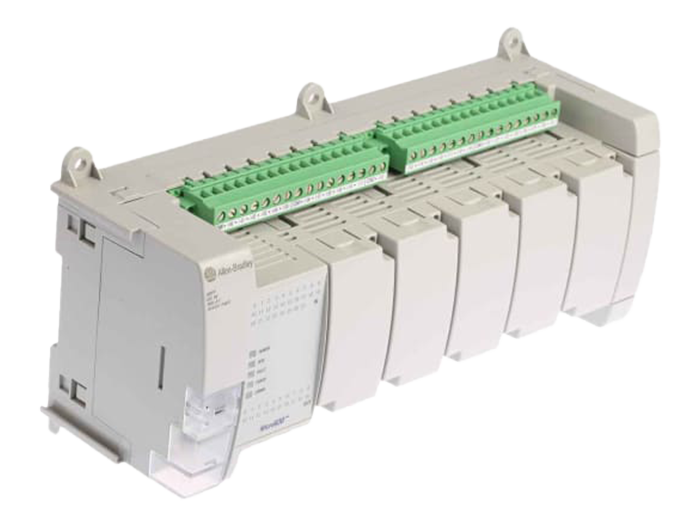

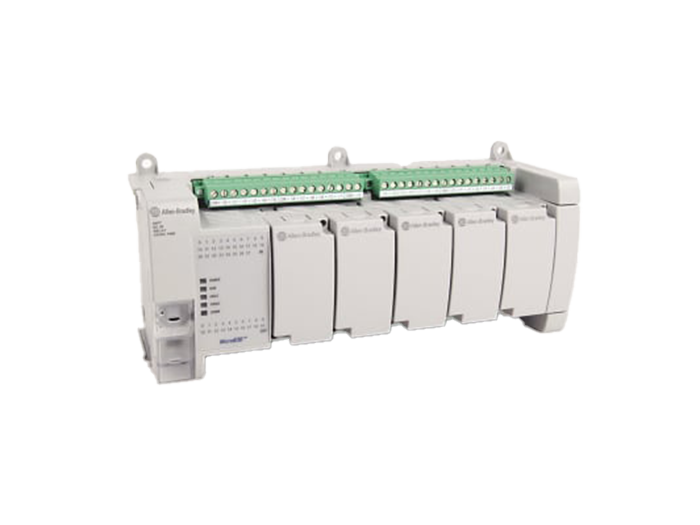

Allen Bradley Programmable Logic Controller, 28 Inputs, 20 Outputs - Micro830 Series - 2080-LC30-48QWB


Need a control solution for your small application process? This programmable logic controller (PLC) from Rockwell Automation's Allen Bradley range offers just that. You can incorporate as many as five plug-in modules into this central processing unit (CPU), which lets you personalise the controller and increase its functionality. The unit offers 28 inputs for connecting modules such as pushbuttons, switches and temperature sensors, and there are 20 outputs for linking devices like relays, motor starters or lights.


Features & Benefits


• Embedded USB (universal serial bus) programming and serial port (RS232/485) for straightforward communication between systems
• Supports three IEC (International Electrotechnical Commission) programming languages, ladder diagram, function block diagram and structured text for configuration versatility
• Includes Connected Components Workbench (CCW) software for controller programming, device configuration and data sharing


Standards and Certifications


• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• C-Tick


What temperature range can this PLC operate in?


This PLC has a wide operating temperature range of -20°C to +65°C, making it a versatile choice for use in commercial and industrial environments.

Specification

Manufacturer SeriesMicro830
Number of Inputs28
Output TypeDigital
For Use WithMicro800 Series
Input TypeDigital
Voltage Category24 V dc
Number of Outputs20
Network TypeModBus
Kit IncludedYes
Communication Port TypeRS232, RS485
Dimensions90 x 230 x 80 mm
Memory8 kB
Programming InterfaceOperating Panel
Width230mm
Minimum Operating Temperature-20°C
Length90mm
Depth80mm
Maximum Operating Temperature+65°C
Number of Communication Ports1
Programming Language UsedFunction Block, Ladder Logic, Structured Text
Program Capacity4 kB
