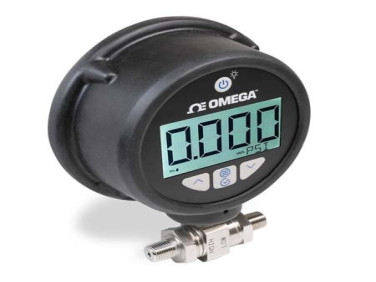

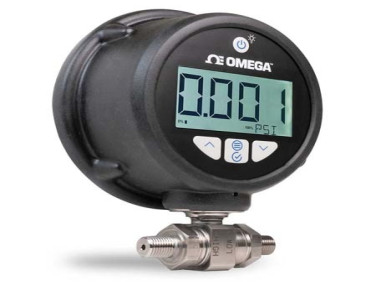

Omega DPG509 Advanced Digital Pressure Gauge

  • NG # 01866-HW-Omega-002

  • MF # 01866-HW-Omega-002

  • SKU # 01866-HW-Omega-002

DPG509 Advanced Digital Pressure Gauge

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

DPG509 series is a digital pressure gauge designed with maximum functionality and usability. It has user-friendly interface with four clearly labeled buttons and a large 4-digit, backlit display. All options are built with an engineered thermoplastic housing with an IP65 rating for durability in harsh environments. A protective rubber boot is also an option for additional protection.

0 to 100psi pressure range Differential type 1/4" NPT male pressure port DC powered . ±0.08% accuracy Current or voltage of 4 to 20mA, 0 to 5VDC, 0 to 10VDC Data logging capability.

Specification


Combined Accuracy
±0.25% or ±0.08% Full Scale Span Options
Enclosure Material
PA12 Thermoplastic
Environmental Rating
IP65
Operating Temperature
-18 to 54 °C (0 to 130°F)
Power Supply
4 Alkaline AA Batteries for All Units, Optional External Power via M12
Stability
±0.3% Span/Year
Weight
1.25 lbs
Calibration
NIST Traceable calibration is a configurable option (not standard)
Display Size
4.95" (126mm) x 2.17" (55mm)
Enclosure Rotation
± 150°
Minimum Resistance Between Transducer Body and any Wire
100 MOhms @100 VDC
Over Pressure
1.5 X Rated Pressure
Pressure Cycles
1 million
Storage Temperature
-40 to 82°C (-40 to 180°F)
Wetted Parts
316L SS, Viton Seal
