NG # 04228-HW-SEN-007

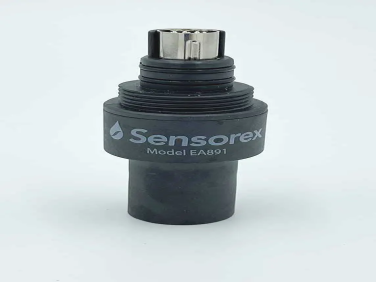

MF # S8075CD + EA891 + EM805-pH-MB + S856/10/TL/TL

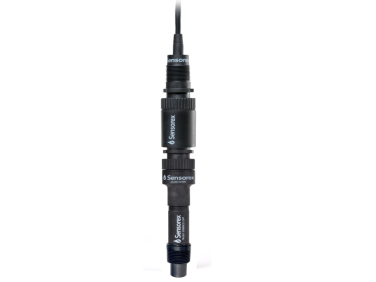

The S8575 Modular Inline pH Smart Sensor is a complete, ready-to-install solution designed for continuous pH and ORP monitoring in industrial and municipal water treatment applications. It combines a high-performance sensor cartridge, integrated electronics, and cable assembly into a single modular system, allowing direct communication with PLC or SCADA systems via Modbus RS485.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe S8575 is part of the Sensorex S8000 Smart Sensor platform, offering a flexible and modular approach to process pH measurement. Its design integrates sensor, electronics, and communication capabilities into one compact unit, eliminating the need for separate transmitters and simplifying installation.
This modular architecture allows individual components such as the sensor cartridge, electronics module, and cable to be replaced independently, reducing maintenance costs and downtime. The system supports digital Modbus RS485 communication, enabling seamless integration with modern control systems like PLCs and SCADA.
Engineered for demanding environments, the S8575 is widely used in industrial and municipal water and wastewater treatment processes. Its configurable design ensures adaptability to various application needs while maintaining reliable and accurate pH and ORP measurement performance.
· Model: S8575 Modular Inline pH Smart Sensor
· Sensor Type: Modular inline pH/ORP smart sensor
· Configuration: Complete system including sensor module, electronics module, and cable assembly

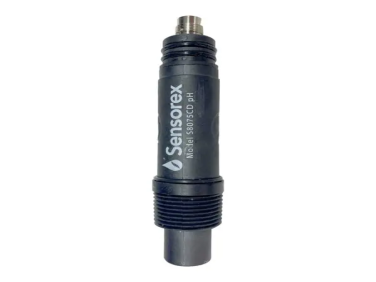

· Sensor Module: S8075 series pH sensor cartridge
· Communication: Modbus RS485 digital communication
· Output Options: Compatible with PLC/SCADA systems (direct connection)
· Modular Design: Replaceable sensor cartridge, electronics, and cable components
· Applications: Industrial water treatment and municipal wastewater monitoring
· Installation Type: Inline process installation
· Parameter Measurement: pH and ORP
· Weight: Approximately 2.00 lbs
· Dimensions: 10 × 10 × 4 inches
· Cable Length: Typically supplied with 10 ft cable (standard configuration)
· Storage Condition: Recommended storage temperature 1530°C
· System Compatibility: Part of Sensorex S8000 Smart Modular Sensor System
· Included Components: Sensor cartridge, electronics module, holder, and cable assembly
