S8300 - Modular pH Sensors for In-line

  • NG # 04222-HW-SEN-001

  • MF # S8300TC

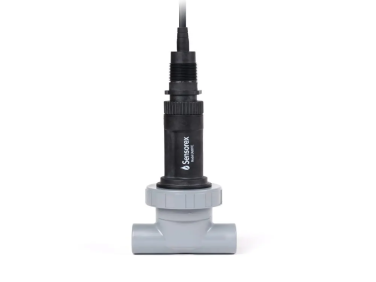

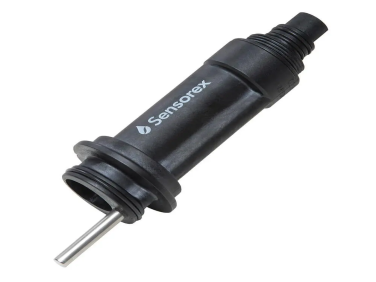

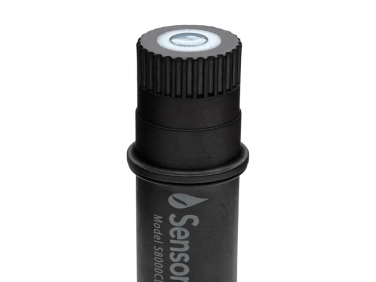

The Sensorex S8300 Modular pH Sensor is a high-performance inline pH measurement solution designed for demanding industrial applications. Featuring a modular quick-change design, it allows fast sensor replacement without tools or rewiring, ensuring minimal downtime and reduced maintenance costs. Ideal for wastewater, chemical processing, and other harsh environments, it delivers reliable and accurate pH monitoring with low total cost of ownership.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Sensorex S8300 is part of the S8000 modular sensor system, engineered specifically for continuous pH monitoring in challenging process conditions. Its innovative modular design enables users to replace only the sensor cartridge instead of the entire probe, significantly improving efficiency and cost-effectiveness.

Built for durability, the sensor performs reliably in heavily contaminated environments such as industrial wastewater and chemical processing. The flat measurement surface benefits from natural cleaning by liquid flow, enhancing measurement stability over time.

The sealed, maintenance-free reference design makes it suitable for pressurized systems, while reusable cables and mounting hardware further reduce operational expenses. With fast response time and high accuracy, the S8300 ensures consistent process control in critical applications.

Specification

  • Measurement Range: 0 to 14 pH (low sodium ion error)
  • Temperature Range: 0 to 100°C
  • Pressure Range: 0 to 100 PSIG
  • Response Time: 95% response in 1 second
  • Isopotential Point: 7.00 pH
  • Offset:  ±0.2%
  • Span: Greater than 97%
  • Body Material: Ryton Polyphenylene Sulfide (PPS)
  • Mounting Orientation: Minimum 5° above horizontal
  • Connector Type: BNC or tinned leads
  • Cable Length Options: 10 ft (3 m) or 20 ft (6 m)
  • Installation Types:

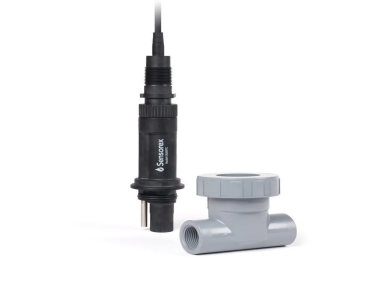

    • Inline (with flow cell)
    • Inline (customer supplied flow cell)
    • Submersion
  • Sensor Design: Modular quick-change cartridge system
  • Reference System: Sealed, maintenance-free
  • Warranty: One-year limited warranty
