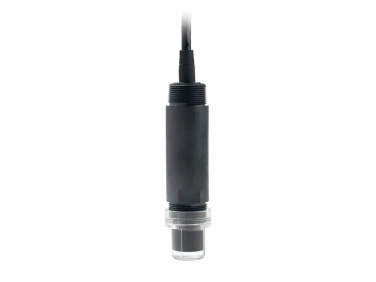

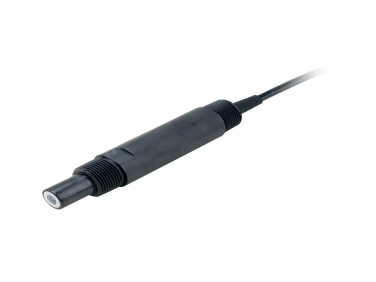

S272CD - Process pH Sensor

  • NG # 04224-HW-SEN-003

  • MF # S272CD

The S272CD is a reliable online pH sensor engineered for industrial and environmental monitoring. It offers extended sensor life, minimal maintenance, and flexible installation options, making it suitable for a wide range of water quality applications.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The S272CD Online Process pH Sensor is a durable and versatile industrial sensor designed for continuous pH monitoring in both in-line and submersion installations. It features advanced double-junction technology to extend operational life and reduce contamination risks. With a rugged Ryton® PPS body and a flat glass measurement surface, the sensor ensures reliable performance, low maintenance, and long-term stability in moderate to demanding applications such as water treatment, agriculture, and industrial processes.

Specification

  • pH Measurement Range: 0 to 14 pH (sodium ion error above 12.3 pH)
  • Temperature Range: 0 to 100°C (32 to 212°F)
  • Maximum Pressure: 100 psig
  • Body Material: Ryton® Polyphenylene Sulfide (PPS)
  • Process Connection: 3/4" NPT threaded for in-line or submersion mounting
  • Cable Length: 3 meters (10 feet) standard
  • Connector Options: BNC or tinned leads
  • Temperature Compensation Options: 1000Ω RTD, 100Ω RTD, or none

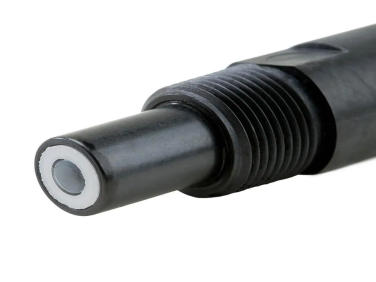

  • Measurement Surface: Flat glass, self-cleaning design
  • Sensor Technology: Double-junction reference system
  • Installation Type: Suitable for in-line and submersion use
  • Maintenance Requirement: Low maintenance due to self-cleaning surface
  • Warranty: One-year limited warranty
