SSRE - Smart Sensor Remote Electronics

  • NG # 04233-HW-SEN-012

  • MF # SSRE

The SSRE Smart Sensor Remote Electronics from Sensorex is a remote electronics module that converts standard analog sensors into smart sensors by providing digital communication outputs such as 4‑20 mA or Modbus. It supports multiple measurement types and is available in either DIN rail or UL enclosure form factors for flexible installation in industrial and process automation applications.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Sensorex SSRE Smart Sensor Remote Electronics module enables analog Sensorex sensors to communicate digitally with instrumentation systems, reducing the need for transmitters and simplifying wiring. It supports a range of common water quality parameters including pH, ORP, various forms of conductivity, and dissolved oxygen. Two installation form factors are provided: a compact DIN rail version for panel integration and a UL‑rated enclosure for wall or field mount. This product is designed to improve inventory management, reduce waste, and provide reliable communication outputs for integration with PLCs, SCADA systems, and other industrial controllers.

Specification

General Features

  • Converts analog sensors to smart sensors with digital communication output (4‑20 mA or Modbus)
  • Available in DIN rail mount or UL‑rated enclosure
  • Compatible with multiple measurement types including pH, ORP, contacting conductivity, toroidal conductivity, and dissolved oxygen
  • Designed to reduce inventory requirements and electronics waste

Measurement Compatibility

  • pH measurement range: 0 to 14
  • ORP measurement range: –1500 to +1500 mV
  • Contacting conductivity range:
    • k=0.1: 0 to 1,000 µS/cm
    • k=1.0: 0 to 10,000 µS/cm
  • Toroidal conductivity range:
    • R1: 0 to 100,000 µS/cm
    • R2: 0 to 2,000,000 µS/cm
  • Dissolved oxygen range:
    • R1: 0 to 100%
    • R2: 0 to 200%

Operating Conditions & Physical

  • Operating temperature: 5° to 70° C (41° to 158° F)
  • DIN rail module dimensions: 2.39"H × 3.54"L × 0.70"W (50.6 mm × 89.8 mm × 17.8 mm)

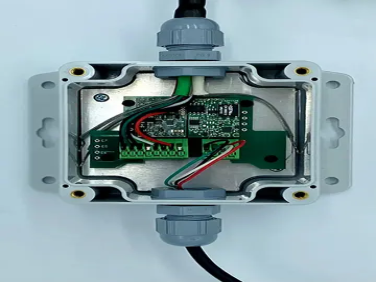

  • UL enclosure module dimensions: 5.39"H × 4.30"L × 2.17"W (137 mm × 109 mm × 55 mm)
  • Weight: approximately 0.50 lbs

Communication & Interface

  • Output options: 4‑20 mA or Modbus RTU
