Pool Plus pH and ORP Electrodes

  • NG # 04235-HW-SEN-014

The Sensorex Pool Plus pH and ORP Electrodes are rugged replacement sensors designed for monitoring pH and oxidation‑reduction potential (ORP) in pool and spa water. These electrodes feature a high molarity salt crystal reference that delivers stable performance and a clear visual indication of when the reference fill is spent. Available in pH only, ORP only, or combined pH/ORP configurations, the Pool Plus series simplifies maintenance and improves reliability in demanding aquatic environments.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pool Plus electrode line from Sensorex delivers reliable water quality sensing for pool and spa applications. With a high molarity reference design, these electrodes provide enhanced stability and extended service life in environments prone to challenging conditions. The crystallite salt reference also serves as a visual indicator of depletion, helping users know when to replace the sensor before performance deteriorates. Multiple series and junction options accommodate clean water, contaminated water, and combined measurement needs. Electrodes are available with choice of connector types and are suitable for both pH and ORP measurement tasks.

Specification

General Characteristics

  • Designed for pool and spa water pH and ORP measurement applications.
  • High molarity salt crystal reference for improved performance and visual indicator of reference depletion.
  • Available as pH only, ORP only, or combined pH/ORP sensors.
  • Offered in single‑junction and double‑junction models depending on application needs.

Series Options

  • PP100 Series: Basic single‑junction design for clean water environments.
  • PP200 Series: Double‑junction design for extended life and resistance to contamination.
  • PP300 Series: Combined pH and ORP sensor simplifying installation and maintenance.

Physical Specifications

  • Diameter: 12 mm.
  • Length: 120 mm.
  • Body Material: Polycarbonate.
  • Junction Material: Pellon.
  • Reference Solution: Sealed KCl/AgCl with crystallite structure.

Performance Specifications

  • Operating Temperature Range: 0 to 60°C (32 to 140°F).
  • Maximum Pressure: 3.44 bar (50 psia).

Connector and Cable

  • Available with 10‑ft (3 m) cable and BNC connector or with S8 connector (cable ordered separately).

Additional Information

  • Weight: Approximately 0.50 lbs.
  • Dimensions: 8 × 2 × 2 inches.

Other Sensorex Products

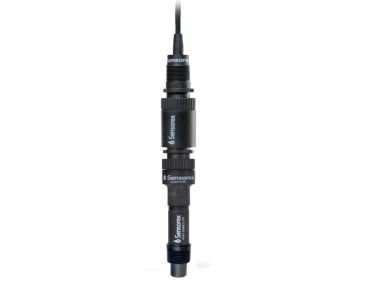

Complete Modular Submersion/Inline* pH 4-20mA Sensors
Sensorex Industrial Tools & Accessories 04225-HW-SEN-004

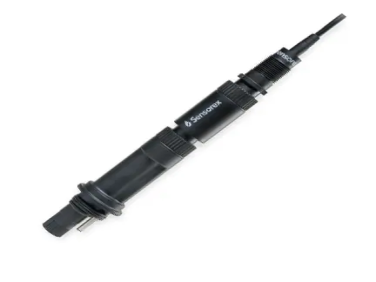

Complete Modular Inline pH Smart Sensors
Sensorex Industrial Tools & Accessories 04228-HW-SEN-007

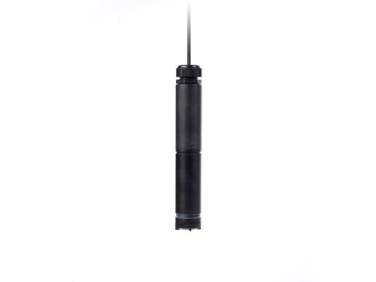

DO6400 - Dissolved Oxygen Sensor with Digital Communication
Sensorex Industrial Tools & Accessories 04232-HW-SEN-011

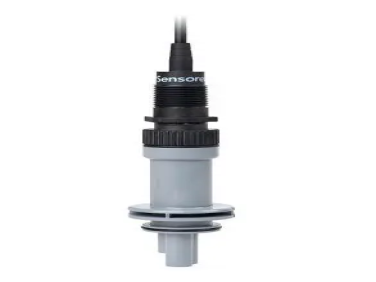

SSRE - Smart Sensor Remote Electronics
