NG # 04234-HW-SEN-013
Double‑junction flat pH and ORP electrodes designed for rugged service and versatility. Featuring a durable plastic body and flat measurement surface, these electrodes resist breakage and fouling in challenging samples such as slurries, viscous liquids, and materials with suspended solids. The DIN 13.5 cap allows connection to extension cables (sold separately) up to 25 ft. Double junction reference prevents contamination and the sealed gel fill requires no maintenance.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

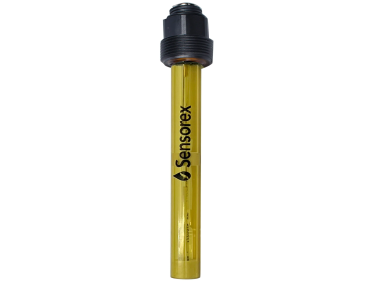

Get A QuoteThe Double‑junction, Plastic Body Flat pH and ORP Electrodes with DIN 13.5 Cap (S354CD series) from Sensorex provide reliable pH and oxidation‑reduction potential measurement in laboratory and industrial environments. With a rugged flat measurement surface and epoxy construction, these electrodes are less prone to breakage and resist coating, making them suitable for use with challenging sample types that include slurries, sludge, and viscous, particulate‑laden media. The double junction design enhances reference stability and reduces contamination risks, while the sealed gel fill eliminates the need for routine maintenance. The DIN 13.5 cap offers flexible connection options with cables up to 25 ft long (ordered separately). Available with general purpose or HF‑resistant glass formulations, this series delivers versatile performance backed by a limited one‑year warranty.
· Product type: Double‑junction, plastic body flat pH and ORP electrodes with DIN 13.5 cap
· Model designation: S354CD series (variants available for pH or ORP)
· Measurement parameters: pH and ORP
· Junction style: Double junction reference to reduce contamination
· Measuring surface: Rugged flat tip resistant to breakage
· Body material: Epoxy plastic for chemical compatibility and durability
· Connector: DIN 13.5 cap (requires separate mating cable)
· Cable: Not included (order separately, up to 25 ft compatible)
· Process connection: DIN 13.5 mm threads
· pH measuring range: 0 to 14 pH (sodium ion error >12.3 pH)
· Reference fill: Sealed gel filled design (maintenance‑free)
· Warranty: One year limited warranty
· Weight: Approximately 0.50 lbs
· Dimensions: About 2 × 2 × 8 inches
· Glass formulation options: General purpose or HF resistant
