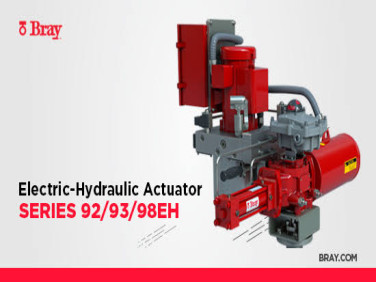

Electro-Hydraulic Actuator – Series 98EH

  • NG # 09330017-HW-BRAY-017

Electro-Hydraulic Actuator – Series 98EH is a self-contained actuator designed for precise, reliable valve automation in demanding industrial applications. It combines hydraulic power with electric control, offering high torque, fast response, failsafe operation, continuous modulation, and zero-emission closed-loop hydraulic performance.





Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Series 98EH Electro-Hydraulic Actuator delivers output torque from 132 to 97,515 Nm and supports operating pressures from 10 to 207 bar. It offers double-acting or spring-return configurations, fail-open, fail-close, fail-freeze, or fail-last functions, and control options from 12/24/48 VDC to 120/220 VAC, including 4–20 mA and 0–10 VDC. With -46°C to 100°C operation, IP-rated weatherproof or explosion-proof construction, ESD/PST capability, and UL, FM, CSA, ATEX certifications, it supports rotary, linear, multi-turn, and damper valves.

Specification

Output Torque: 1,177–863,089 in-lb (132–97,515 Nm)
Control Options: 12, 24 or 48 VDC; 120 or 220 VAC; 4–20 mA; 0–10 VDC; Network Protocols
Temperature Range: -50°F to 212°F (-46°C to 100°C)
Power Source: 12, 24 or 48 VDC; 120 or 220 VAC; 480V 3-Phase, 50–60 Hz; Solar or Wind Charged Power Packs
Maximum Allowable Operating Pressure: 150–3000 psi (10–207 bar)
Enclosure Ratings: Weatherproof and Explosionproof
Mounting: ISO 5211:2001(E), MSS SP-101-1989
Testing Standard: EN 15714-4:2009
Duty Cycle: On/Off, Modulating
Certifications: UL, FM, CSA, ATEX
Valve Compatibility: Rotary, Linear, Multi-Turn and Damper Valves
