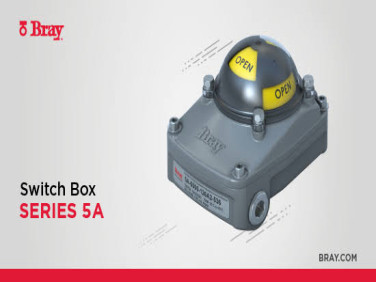

Switch Box Series 5A

  • NG # 09330022-HW-BRAY-022

Valve Status Monitor – Series 5A provides reliable visual and electrical position indication for VDI/VDE 3845-compliant quarter-turn devices. Its compact, low-profile design, high-visibility indicator, multiple switch options, and IP66/IP67-rated enclosure support dependable valve monitoring in space-constrained industrial environments.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Bray Series 5A Switch Box is a compact Valve Status Monitor designed for reliable open/closed position feedback on automated quarter-turn valves. It features two switch positions, NAMUR mounting, high-visibility position indication, tool-free cam adjustment, and mechanical or proximity switch options including SPDT, PNP, NPN, Reed, and intrinsically safe NAMUR configurations. The weatherproof enclosure provides IP66/IP67 and NEMA 4/4X protection, with optional ATEX and IECEx certifications. Operating temperatures range from -25°C to 65°C.

Specification

Certifications: CE, cULus (most models), SIL 3 capable; Optional: ATEX, IECEx
Communication Protocols: None
Enclosure Ratings: IP66/67, NEMA 4/4X, UL50E Salt Spray
Visual Display: High-Visibility Indicator; Beacon Color Options: Red/Yellow (Standard), Red/Green, Black/Yellow, Red/Green Inverse
Switch Quantities: 2
Mounting: VDI/VDE 3845 Compliant (NAMUR)
Temperature Range: -13°F to 149°F (-25°C to 65°C)
Conduit Ports: 2 × ½" NPT or 2 × M20
Switch Options: Mechanical: SPDT, SPDT (Low Power); Proximity: PNP, NPN, 140V 2-Wire, 250V 2-Wire, Reed, NAMUR Intrinsically Safe

Other Bray Products

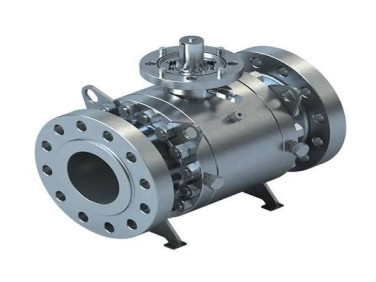

Trunnion Mounted Ball Valve – Series 1B
Bray Industrial Tools & Accessories 09330012-HW-BRAY-012

Resilient Seated Butterfly Valve – Series 3W/3L
Bray Industrial Tools & Accessories 09330001-HW-BRAY-001

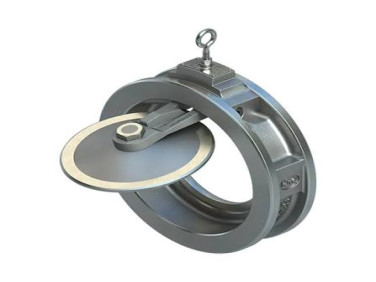

Single Door Check Valve
Bray Industrial Tools & Accessories 09330015-HW-BRAY-015

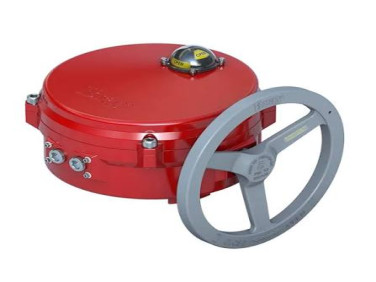

Electric Valve Actuator – Series 70
Bray Industrial Tools & Accessories 09330013-HW-BRAY-013

Electro-Hydraulic Actuator – Series 98EH
Bray Industrial Tools & Accessories 09330017-HW-BRAY-017

3-Piece Ball Valve – Series 7000/8000
Bray Industrial Tools & Accessories 09330007-HW-BRAY-007

Tri Lok® Triple Offset Butterfly Valve
Bray Industrial Tools & Accessories 09330004-HW-BRAY-004

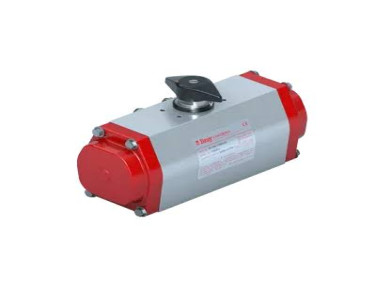

Rack and Pinion Pneumatic Actuator – Series 92/93
Bray Industrial Tools & Accessories 09330018-HW-BRAY-018

3-Piece Micro Pure Ball Valve – Series S7500/S7700
Bray Industrial Tools & Accessories 09330008-HW-BRAY-008

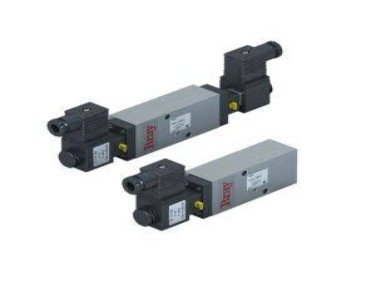

NAMUR Solenoid Valve – Series 63
Bray Industrial Tools & Accessories 09330021-HW-BRAY-021

Resilient Seated Butterfly Valve – Series 35/36
Bray Industrial Tools & Accessories 09330002-HW-BRAY-002

McCannalok Cryogenic High Performance Butterfly Valve
Bray Industrial Tools & Accessories 09330005-HW-BRAY-005

Flanged Floating Ball Valve – Series F15/F30
Bray Industrial Tools & Accessories 09330010-HW-BRAY-010

V-Control Ball Valve
Bray Industrial Tools & Accessories 09330009-HW-BRAY-009

Heavy-Duty Pinch Valve – Series PVA
Bray Industrial Tools & Accessories 09330019-HW-BRAY-019

Switch Box Series 5C
Bray Industrial Tools & Accessories 09330023-HW-BRAY-023

Inductive Proximity Sensor Series 54-GS
Bray Industrial Tools & Accessories 09330020-HW-BRAY-020

PTFE Lined Butterfly Valve Series 22/23
Bray Industrial Tools & Accessories 09330003-HW-BRAY-003

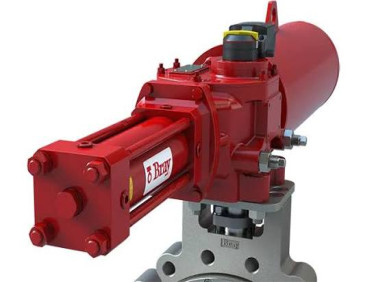

Scotch Yoke Hydraulic Actuator – Series 98H
