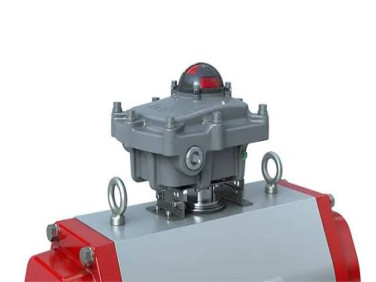

Switch Box Series 5C

  • NG # 09330023-HW-BRAY-023

Explosion-Proof Valve Status Monitor – Series 5C provides reliable visual and electrical position feedback for quarter-turn valve automation in hazardous and demanding environments. Its rugged aluminum enclosure, high-visibility indicator, multiple switch configurations, and enhanced environmental protection support dependable valve monitoring where durability and safety are essential.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Bray Series 5C Switch Box is an explosion-proof Valve Status Monitor designed for VDI/VDE 3845-compliant NAMUR mounting. It offers IP66/67/68 and NEMA 4/4X protection, high-visibility open/closed indication, and up to six mechanical or proximity switches. Communication options include AS-i, Profibus DP, and DeviceNet, while CE, cULus, ATEX, and IECEx certifications support hazardous-area applications. The compact aluminum housing provides corrosion, wear, and impact resistance, with tool-free splined cam adjustment for accurate switch activation. Operating temperature is -25°C to 65°C.

Specification

Certifications: CE, cULus, ATEX, IECEx, SIL 3 capable
Communication Protocols: AS-i, PROFIBUS DP, DeviceNet
Enclosure Ratings: IP66/67/68, NEMA 4/4X, UL50E Salt Spray
Visual Display: High-Visibility Indicator;
Beacon Color Options: Red/Yellow (Standard), Red/Green, Black/Yellow, Red/Green Inverse
Switch Options: Mechanical: SPDT, DPDT; Proximity: PNP, NPN
Switch Quantities: Up to 6
Mounting: VDI/VDE 3845 Compliant (NAMUR)
Temperature Range: -13°F to 149°F (-25°C to 65°C)
Conduit Ports: 2 × ¾" NPT, 1 × ½" NPT or 2 × M25, 1 × M20
