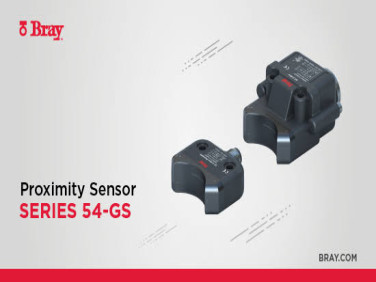

Inductive Proximity Sensor Series 54-GS

  • NG # 09330020-HW-BRAY-020

Inductive Proximity Sensor – Series 54-GS provides reliable open and close position feedback for quarter-turn valves. Its dual-sensor design, hermetically sealed construction, non-contact operation, and resistance to washdown, shock, vibration, UV, and corrosion support dependable valve monitoring in demanding industrial environments.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Bray Series 54-GS Inductive Proximity Sensor mounts directly to VDI/VDE 3845-compliant actuators for compact valve automation. It features two independent normally open sensors, PNP or DC 2-wire outputs, IP66/IP67 protection, and a rated operating distance of up to 2.43 mm. Operating from 5–30 V DC or 10–30 V DC depending on output type, it supports switching frequencies up to 1000 Hz and temperatures from -25°C to 70°C. LED indicators simplify status monitoring, while maintenance-free non-contact sensing helps minimize mechanical wear.

Specification

Switching Function: PNP: 2 × Normally Open (NO); DC 2-Wire: 2 × Normally Open (NO)
Output Type: PNP, DC 2-Wire
Communication Protocols: None
Rated Operating Distance: 0–2.43 mm
Enclosure Ratings: IP66/IP67
Connections: Pin Connector, Cable Gland
Operating Voltage: PNP: 10–30 VDC; DC 2-Wire: 5–30 VDC
Mounting: NAMUR/VDI VDE 3845
Switching Frequency: PNP: 0–1000 Hz; DC 2-Wire: 0–500 Hz
Temperature Range: -13°F to 158°F (-25°C to 70°C)
Certifications: cULus Listed, General Purpose
