Rack and Pinion Pneumatic Actuator – Series 92/93

  • NG # 09330018-HW-BRAY-018

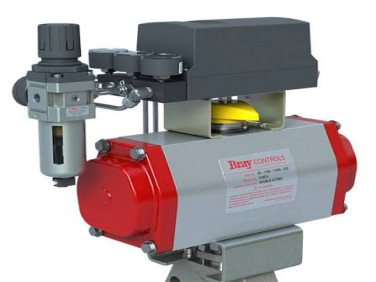

Rack and Pinion Pneumatic Actuator – Series 92/93 is designed for reliable on/off and throttling control of quarter-turn valves. Its compact opposed-piston design, direct ISO 5211 mounting, adjustable travel stops, and modular accessories provide flexible automation for butterfly and ball valves in demanding industrial applications.

Manufactured By :
Bray
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Series 92/93 Pneumatic Actuator combines a self-contained rack-and-pinion mechanism with flexible double-acting and spring-return configurations. It delivers output torque up to 4,986 Nm, operates at pressures up to 10 bar, and uses dry compressed air or inert gas. IP66/IP67M protection, NAMUR accessory compatibility, ISO 5211 mounting, and SIL 3 certification support reliable valve automation. Its modular design and adjustable travel stops simplify installation, maintenance, and precise quarter-turn control.

Specification

Output Torque: Up to 44,130 in-lb (4,986 Nm)
Control Options: On-Off, Throttling, Double Acting, Spring Return
Temperature Range: -40°F to 300°F (-40°C to 149°C)
Power Source: Pneumatic
Maximum Allowable Operating Pressure: Up to 140 psig (10 bar)
Enclosure Ratings: IP66/IP67M per IEC 60529
Mounting: ISO 5211:2001(E)
Supply Media: Dry Compressed Air, Inert Gas
Certifications: ABS, ATEX, Bureau Veritas, PED, SIL 3
Options: Single or Double Acting, Extended Travel Stops
Valve Compatibility: Butterfly Valves, Ball Valves
