ATEX Pressure Transmitter

  • NG # 04043-HW-microsensor-016

  • MF # MPM489

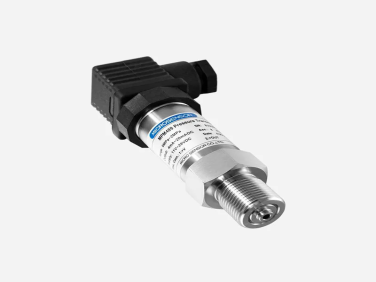

The MPM489 ATEX Pressure Transmitter is a robust industrial pressure sensor designed for use in hazardous and harsh environments. It utilizes piezoresistive technology to deliver reliable and precise pressure measurement with excellent linearity, repeatability, and minimal hysteresis. The transmitter is available with explosion-proof and intrinsic safety certifications, making it suitable for automation control applications in oil and gas, petrochemical, hydrology, and other industrial sectors.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM489 ATEX Pressure Transmitter integrates a high-stability piezoresistive sensing element with specialized circuitry housed in a durable stainless steel body. This configuration ensures reliable performance in demanding industrial conditions, including environments with potential explosive atmospheres. The product supports various analog output signals, multiple pressure ranges, and is certified for compliance with international safety and quality standards. Typical applications include pressure monitoring and control across oil and gas, water resource management, and petrochemical industries.

Specification

General Characteristics

  • Pressure transmitter model: MPM489 ATEX Pressure Transmitter
  • Sensor technology: Piezoresistive pressure sensor
  • Housing: High-strength stainless steel
  • Structure: Integrated construction with standardized outputs and connections

Measurement Parameters

  • Pressure range: -1 bar…0 mbar up to 100 mbar…1000 bar
  • Pressure type options: gauge, absolute, sealed gauge (based on datasheet variants)

Output Signals

  • 2-wire 4 mA to 20 mA DC
  • 3-wire 0/1 V to 5/10 V DC
  • 0.5 V to 2.5 V / 4.5 V DC

Accuracy and Performance

  • Typical accuracy: 0.25% of full scale (FS)
  • Linearity, repeatability, and hysteresis designed for high precision
  • Robust circuit design for resistance to EMI and surge interference

Certifications and Safety

  • ATEX explosion-proof certification (II 1 G Ex ia IIC T4 Ga)
  • Explosion-proof type (Ex d IIC T6 Gb)
  • CE and RoHS approved
  • Additional approvals including CCS, ABS, and DNV for marine installation

Environmental and Operating Conditions

  • Suitable for harsh industrial environments and hazardous areas
  • Designed to maintain stable performance despite electrical and mechanical interference

Applications

  • Oil and gas industry pressure measurement and control
  • Hydrology and water resources monitoring
  • Petroleum and petrochemical systems
