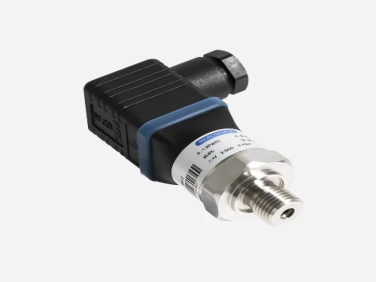

Pressure Transmitter Suitable For General Industry

  • NG # 04045-HW-microsensor-018

  • MF # M20

The M20 Pressure Transmitter is a rugged industrial pressure sensor designed for general industrial applications requiring reliable and accurate pressure measurement. Featuring a compact design with full digital temperature compensation and calibration, it supports multiple output signal types and is suitable for monitoring air, water, mixed oil, and other compatible fluids. The transmitter is certified to major international standards and offers flexibility for diverse industrial environments.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The M20 Pressure Transmitter from Microsensor is engineered for general industry use including measurement and control systems, pumps and compressors, and hydraulic and pneumatic devices. It provides high accuracy and stability through a precision integrated electrical structure with digital temperature compensation. Available with various output options and process connections, it is compatible with a wide range of media and applications. The product complies with international certifications, ensuring dependable performance in industrial settings.

Specification

General

  • Model: M20 Pressure Transmitter suitable for general industry use.
  • Application: General industry measurement and control, pumps and compressors, hydraulic and pneumatic systems.
  • Certifications: CE, RoHS, UL, REACH (international reliability standards).

Pressure Measurement

  • Pressure Range: 0~250 mbar to 0~250 bar (0 kPa ~ 25 kPa up to 0 MPa ~ 25 MPa equivalent).
  • Pressure Types: Gauge; Absolute and Positive/Negative available (per extended spec).

Accuracy

  • Accuracy Options: ±0.25%FS (@25°C), ±0.5%FS (@25°C).

Output Signals

  • Output Types:
    • 4 mA ~ 20 mA DC
    • Voltage outputs: 0 V~5 V DC, 1 V~5 V DC, 0 V~10 V DC
    • 0.5 V ~ 4.5 V DC



Electrical Connection Options

  • Angular connector: DIN 175301-803A
  • Circular aviation plug: M12×1 (4-pin) IEC 61076-2-101
  • Cable: Φ5.0 mm, 5×0.12 mm² polyurethane (PUR) cable.

Process Connection

  • Available thread types include:
    • M20×1.5
    • G1/4A
    • NPT1/4
    • R1/4
  • Other thread options available on request.

Mechanical and Structural

  • Construction: Fully welded with molecular sieve (enhanced durability).
  • Compact size suitable for general industrial environments.

Media Compatibility

  • Compatible with air, water, mixed oil, and other fluids that are compatible with the wetted materials.

Features

  • Small and robust industrial design.
  • High reliability and stability with digital compensation and calibration.
  • Flexible output and connection options to meet specific application requirements.
