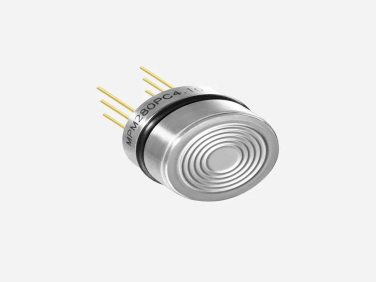

Flat Membrane Pressure Sensor

  • NG # 04030-HW-microsensor-003

  • MF # MPM280F

The MPM280F is a compact flat membrane (flush diaphragm) pressure sensor designed for industrial and hygienic applications such as food, pharmaceutical, and liquid or gas pressure measurement. It features a stainless-steel housing, optional hygienic structure, and cleanable flush membrane suited for media with particulate contamination or residue.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Flat Membrane Pressure Sensor (MPM280F) is a piezoresistive pressure element with a flush diaphragm that allows direct and broad contact with the measured medium, making it especially suitable for viscous or contamination-prone fluids. Its hygienic design simplifies cleaning and extends sensor life. The sensor is available with various mechanical connections (e.g., male thread or clamp) and can be customized in electrical and mechanical configurations to meet specific application needs.

Specification

General

  • Model: MPM280F Flat Membrane Pressure Sensor
  • Type: Flush (flat) diaphragm pressure sensor
  • Housing Material: Stainless steel 316L
  • Sealing Options: FKM or silicone O-ring
  • Connection Types: Male thread or clamp options

 Physical

  • Size / Dimensions: Φ19 × 13.5 mm
  • Flush Membrane: Yes (cleanable, hygienic)

Pressure Characteristics

  • Pressure Range: 0 bar ~ 0.35 bar … up to 200 bar (configurable)
  • Measurement Types: Gauge, Absolute, and Sealed gauge
  • Negative Pressure Measurement: Supported
  • Overpressure Capacity: 2× full scale (FS)

 Performance

  • Power Supply: ≤ 2.0 mA DC
  • Linearity: ±0.15 % (Typical)
  • Repeatability: ±0.05 % (Typical)

 Applications

  • Industrial process control
  • Level and gas or liquid pressure measurement
  • Food, pharmaceutical, and hygienic industries
