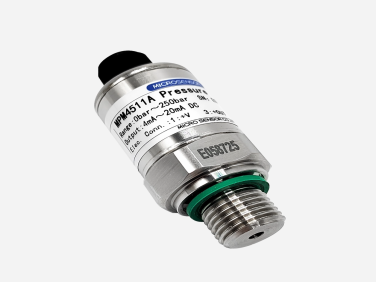

Hydraulic Pressure Transmitter

  • NG # 04053-HW-microsensor-027

  • MF # MPM4511A

MPM4511A is a hydraulic pressure transmitter optimized for use in hydraulic and pneumatic systems. It features glass micro‑fused sensor technology, high measurement accuracy, excellent interference resistance, and compact structural design for reliable pressure monitoring in demanding industrial applications.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM4511A Hydraulic Pressure Transmitter is a robust industrial-grade pressure sensor designed for hydraulic and pneumatic systems, particularly in construction and engineering machinery environments. It employs advanced micro‑fused sensor technology and a stainless steel integrated construction to enhance resistance to shock, vibration, and overload. The transmitter delivers reliable pressure measurement with high accuracy and long‑term stability, suitable for continuous operation under harsh working conditions.

Specification

General

  • Model: MPM4511A Hydraulic Pressure Transmitter
  • Applicable Media: Hydraulic and Pneumatic Systems

Pressure Measurement

  • Pressure Range: 0 bar to 16 bar … 350 bar (varies by configuration)
  • Pressure Type: Gauge / Sealed Gauge
  • Accuracy: ±0.5% FS at 25°C
  • Long‑Term Stability: ±0.25% FS per year
  • Overpressure Tolerance: Up to 2×FS (varies by range)
  • Burst Pressure: Up to 5×FS (range dependent)

Output and Electrical

  • Output Options:
    • 4 mA to 20 mA DC
    • 0.5 V to 4.5 V DC
    • Dual output configurations available (e.g., 4–20 mA & 20–4 mA; 0.5–4.5 V & 4.5–0.5 V)
  • Supply Voltage (typical): Various DC ranges depending on output type (e.g., 5 V to 33 V DC)

Environmental and Mechanical

  • Operating Temperature: −40°C to 125°C (single output), −40°C to 85°C (dual output)
  • Temperature Compensation: −10°C to 80°C
  • Vibration Resistance: 20g, 10 Hz to 2000 Hz
  • Shock Resistance: 100g, 11 ms
  • Protection Rating: IP67
  • Construction Material: Stainless steel with micro‑fused sensor technology

Applications

  • Hydraulic systems (elevating platforms, construction machinery)
  • Pneumatic systems
  • Pumps and compressors
  • HVAC and industrial process control systems
  • Hydraulic servo control (e.g., injection molding machines)
