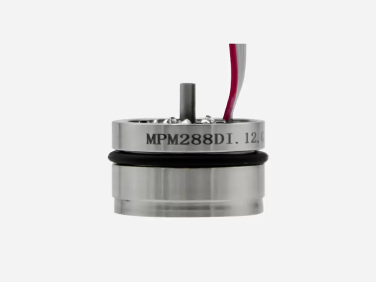

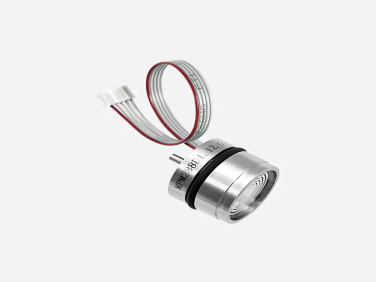

Digital Output Pressure Sensor

  • NG # 04032-HW-microsensor-005

  • MF # MPM288DI

The MPM288DI is a compact, cost‑effective digital pressure sensor that outputs pressure and temperature data over a standard I²C digital interface. It uses a mature pressure chip and dedicated conditioning circuitry with dual 24‑bit ADCs to ensure stable, reliable performance. Its low‑power standby mode (<100 nA) makes it suitable for low‑power and IoT applications.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM288DI is part of Micro Sensor’s general pressure sensor series, designed for industrial process control, smart pressure gauges, medical devices, and IoT systems. It supports a wide pressure range from -1 bar to 35 bar and provides digital output via the I²C protocol for both pressure and temperature measurement. The sensor features a rugged, all‑stainless‑steel (316L) build and is optimized for environments with strict power consumption requirements thanks to its low‑power standby mode.

Specification

General

  • Product: MPM288DI Digital Output Pressure Sensor
  • Type: Digital I²C pressure sensor with integrated temperature readout
  • Applications: Industrial process control, smart gauges, medical devices, IoT systems

Pressure Range

  • Range options: from -1 bar … 0 bar up to 0.35 bar … 35 bar

Output & Interface

  • Output signal: Digital I²C (pressure & temperature)

Performance & Features

  • Dual 24‑bit ADC for high‑resolution measurement
  • Low power standby mode: <100 nA
  • Stable and reliable performance via mature chip & conditioning circuitry
  • Cost‑effective and compact design

Material & Construction

  • Stainless steel 316L body for high durability
  • Standard OEM pressure sensing element mounting diameter (Φ19 mm)

Power & Control

  • Dedicated control pins for power management and networking (CS)
