Thread Connected Pressure Sensor

  • NG # 04029-HW-microsensor-002

  • MF # MPM283VI

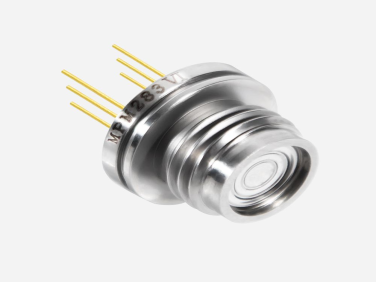

The MPM283VI Thread Connected Pressure Sensor is a compact, high-precision piezoresistive pressure sensing element with a threaded M14×1.5 connection. Designed for medium to high pressure measurement (up to 1000 bar), it delivers reliable performance across various industrial fluid and gas applications.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM283VI is an OEM pressure sensor featuring a robust stainless-steel construction and isolated diaphragm design, suitable for a wide range of industrial process control systems. Its small size and standard thread allow easy installation and good interchangeability with other threaded pressure sensors. It supports gauge, absolute, or sealed gauge pressure types and can be tailored to specific application needs. Common applications include industrial pressure control, refrigeration and air conditioning equipment, and general fluid/gas pressure measurement systems.

Specification

General

  • Model: MPM283VI Thread Connected Pressure Sensor
  • Compact diameter: Φ12.6 mm
  • Thread connection: M14×1.5-6g
  • Measurement range: 0 bar to 100 bar…1000 bar (configurable)
  • Customizable configurations available

Pressure Types

  • Gauge, Absolute, and Sealed Gauge options

Materials & Construction

  • Diaphragm/Housing: Stainless Steel 316L (optional Hastelloy C)
  • Isolated diaphragm structure for fluid compatibility
  • O-ring seal: FKM

Electrical Characteristics

  • Output impedance: 3.5 kΩ ~ 6 kΩ
  • Response time (10% – 90%): < 1 ms
  • Electrical connection: Kovar or silicon rubber flexible wires

Performance

  • Overpressure tolerance: 2× full scale or 1100 bar (min.)
  • Net weight: ~8 g

Applications

  • Industrial process control and automation
  • Pressure measuring instruments and calibration
  • Refrigeration and HVAC systems
