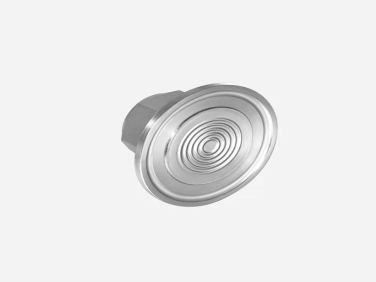

Hygienic Pressure Sensor

  • NG # 04037-HW-microsensor-010

  • MF # MPM280PD1

The MPM280PD1 is a hygienic piezoresistive pressure sensor and transmitter designed for sanitary industrial applications such as healthcare, food & beverage, pharmaceuticals, and wastewater treatment. It features a 316L stainless steel diaphragm (Ø32 mm) that facilitates easy cleaning and meets hygienic design requirements, with versatile pressure range options and multiple configuration choices for mechanical and electrical interfaces.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM280PD1 Hygienic Pressure Sensor from MicroSensor is engineered to deliver high-accuracy pressure measurement in hygiene-sensitive environments. It utilizes piezoresistive silicon sensing technology packaged in a corrosion-resistant 316L stainless steel housing with hygienic structural design for cleaning and maintenance ease. The sensor supports various pressure output modes and connection types, making it suitable for demanding sanitary process control systems.

Specification

General

  • Model: MPM280PD1
  • Type: Hygienic pressure sensor and transmitter
  • Sensor Technology: Piezoresistive silicon
  • Diaphragm diameter: Ø32 mm (hygienic design)
  • Typical connection: Standard DN25 Clamp
  • Applications: Healthcare, pharmaceuticals, food & beverage, wastewater treatment

 Pressure Characteristics

  • Pressure ranges available: 0 bar ~ 0.35 bar up to 35 bar
  • Pressure types available: Gauge, Absolute, Sealed Gauge
  • Negative pressure measurement available: down to ~-1 bar
  • Overpressure capability: 2× Full Scale (FS)

 Electrical Performance

  • Power supply: ≤2.0 mA DC
  • Electrical connection options: φ0.5 mm Kovar pin or 100 mm silicon rubber flexible wires
  • Output characteristics:
    • Common mode voltage output: ~50% of input (typ.)
    • Input impedance: 2.5 kΩ ~ 8 kΩ
    • Output impedance: 3.5 kΩ ~ 6 kΩ
  • Response time (10 % → 90 %): <1 ms
  • Insulation resistance: 100 MΩ @ 100 V DC

Construction & Materials

  • Diaphragm: Stainless steel 316L
  • Housing: Stainless steel 316L
  • Pin: Kovar
  • O-ring: FKM
  • Net weight: ~148 g (PD1)

Features

  • Hygienic structure that is easier to clean
  • Suitable for various fluid media with isolated construction
  • Multiple mechanical and electrical configurations available
  • Compatible with constant-current or constant-voltage power supplies
