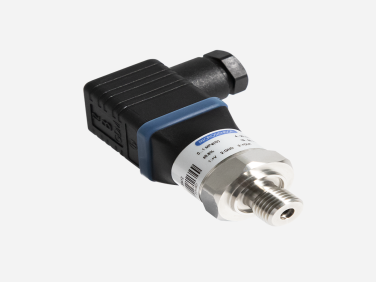

Pressure Transmitter for Oxygen Measurement

  • NG # 04048-HW-microsensor-021

  • MF # M20FL

The M20FL pressure transmitter for oxygen measurement is a precision instrument designed for gas pressure monitoring in oxygen-related applications. It features an all-welded structure, fully digital temperature compensation and calibration, and is filled with internally flushed Fluorinated® oil to ensure high accuracy, stability, and safety. The product complies with industrial cleaning standards and is widely used across medical, pharmaceutical and industrial sectors.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The M20FL Pressure Transmitter for Oxygen Measurement is a specialized pressure transducer tailored for the accurate and reliable monitoring of oxygen gas pressure in critical environments. Engineered with a robust all-welded design, the transmitter incorporates advanced digital temperature compensation and calibration to maintain consistent performance across varying conditions. The sensing element is filled with Fluorinated® oil internally flushed for optimal compatibility in oxygen service, enhancing both safety and measurement reliability.

Specification

Key Specifications

  • Pressure type: Gauge, Absolute, Positive/Negative
  • Pressure range: 0 kPa ~ 25 kPa to 0 MPa ~ 25 MPa
  • Electrical connection options:
    • Angular Connector DIN 175301-803A
    • Circular Aviation Plug M12×1 (4-pin) IEC 61076-2-101
    • Cable Φ5.0 mm 5×0.12 mm² Polyurethane
  • Filled with internally flushed Fluorinated® oil
  • All-welded design
  • Fully digital temperature compensation calibration
  • Cleaned to meet ISO 15001 / ASMT G-93 standards

Typical Uses

  • Medical oxygen production equipment
  • Oxygen tank pressure measurement
  • Suitable for pharmaceutical, aerospace, chemical, metallurgy, and energy industries
