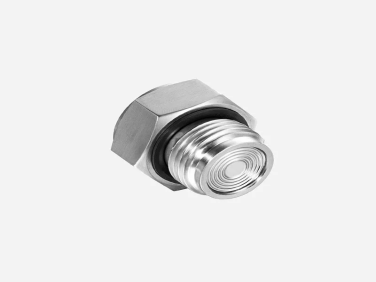

Flush Diaphragm Pressure Sensor

  • NG # 04038-HW-microsensor-011

  • MF # MPM280P

The MPM280P Flush Diaphragm Pressure Sensor is a rugged industrial pressure measurement device designed for accurate monitoring of gases and liquids. It features a flush diaphragm suitable for applications where particulate or viscous media are present, offering multiple connection options and flexible electrical configurations for process control environments.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM280P pressure sensor from MicroSensor is a flush diaphragm industrial sensor used to accurately measure gas and liquid pressures in a variety of settings, including process control, refrigeration systems, and air pressure monitoring. Its flush diaphragm design helps prevent clogging and allows for reliable measurement in viscous or particle-laden fluids. The sensor supports different thread and clamp connection types, offers customizable electrical interfaces, and is available in gauge, absolute, or sealed gauge pressure modes.

Specification

Mechanical & Physical

  • Model: MPM280P Flush Diaphragm Pressure Sensor
  • Diaphragm type: Flush diaphragm for viscous/contaminated media measurement
  • Pressure port connections:
    • G1/2 male
    • R1/2 male
    • NPT1/2 male
    • M20 x 1.5 male
    • DN25 clamp with FKM or silicon O-ring seal

Pressure Range & Types

  • Pressure range: 0bar ~ 0.35bar to 350bar
  • Available pressure measurement types:
    • Gauge
    • Absolute
    • Sealed Gauge
  • Negative pressure measurement: Down to approx. −1bar available

Electrical & Performance

  • Power supply: ≤ 2.0mA DC
  • Electrical connection options:
    • φ0.5mm Kovar pin
    • 100mm silicon rubber flexible wires
  • Output characteristics:
    • Common mode voltage: ~50% of input (typical)
    • Input impedance: 2.5kΩ to 8kΩ
    • Output impedance: 3.5kΩ to 6kΩ
  • Response time: < 1ms (10%–90%)
  • Insulation resistance: 100MΩ @ 100V DC
  • Overpressure tolerance: 2× full scale

Special Features

  • Hygienic construction option (Ra < 0.4 μm) for sanitary or food-grade environments
  • Isolated construction suitable for fluid media measurement
