Piezoresistive Pressure Sensor

  • NG # 04036-HW-microsensor-009

  • MF # MPM281VC

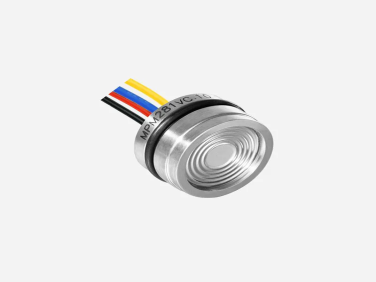

MPM281VC is a compact piezoresistive pressure sensor designed for measuring the pressure of gases and other fluids (e.g., water, oil). It features a stainless-steel construction and is suitable for applications requiring a small form factor and constant voltage excitation.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM281VC Gas Pressure Sensor is a piezoresistive pressure sensing element with a Φ19 mm diameter in a stainless steel 316L housing, oil-filled for improved stability. Operating from a constant voltage supply, it provides a normalized voltage output that can be compensated and amplified to standard industry interfaces. It is designed for fluid pressure measurement in gases, liquids, and other compatible media.

Specification

General

  • Model: MPM281VC – Piezoresistive pressure sensor (gas/liquid)
  • Sensor type: Piezoresistive with silicone oil filling

Mechanical

  • Housing material: Stainless steel 316L
  • Body Diameter: Φ19 mm
  • Flexible leads: Silicon rubber wires
  • Seal: FKM O-ring

Pressure Ratings

  • Pressure range: 0 bar to 0.35 bar … 1000 bar (various options)
  • Pressure types available: Gauge, sealed gauge, absolute

Electrical

  • Power supply: Constant voltage, ≤10 V DC
  • Output signal: Normalized analog voltage (~100 ±2 mV) at supply excitation

Performance & Features

  • Easy temperature compensation and signal amplification for standard outputs
  • Reliable performance in limited installation spaces
  • Custom designs available upon request
